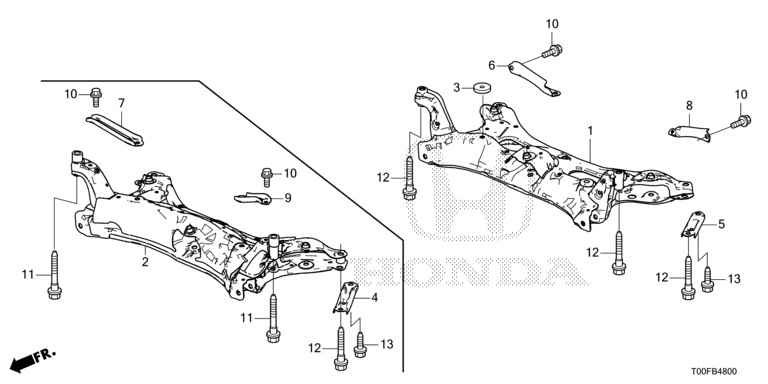

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 2 | 50200-T9C-010 | SUB FRAME FRONT SUSPENSION | 001 |
| 4 | 50275-T13-K00 | STAY, RR. SUB FRAME | 002 |
| 7 | 50290-T9D-000 | STAY, R. GEAR BOX | 001 |
| 9 | 50295-T9D-000 | STAY, L. GEAR BOX | 001 |
| 10 | 90163-S5A-000 | BOLT, FLANGE, 10X20 | 002 |
| 11 | 90175-TZA-000 | BOLT-WASHER, 14X115 | 002 |
| 12 | 90179-T02-000 | BOLT-WASHER, 14X90 | 002 |
| 13 | 90186-SDA-A00 | BOLT, FLANGE, 12X33 | 002 |
