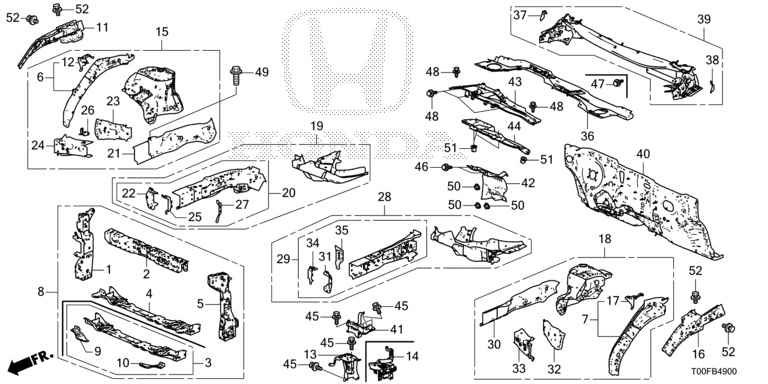

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 04601-T08-K00ZZ | STAY SET, R. FR. BULKHEAD SIDE | 001 |
| 2 | 04602-T08-K00ZZ | FRAME SET, FR. BULKHEAD UPPER | 001 |
| 4 | 04603-T08-K00ZZ | CROSSMEMBER SET, FR. BULKHEAD LOWER | 001 |
| 5 | 04611-T08-K00ZZ | STAY SET, L. FR. BULKHEAD SIDE | 001 |
| 6 | 04674-T08-K00ZZ | EXTENSION SET, R. FR. SHOCK ABSORBER | 001 |
| 7 | 04684-T08-K00ZZ | EXTENSION SET, L. FR. SHOCK ABSORBER | 001 |
| 8 | 60400-T08-K00ZZ | BULKHEAD FRONT | 001 |
| 11 | 60610-T00-T00ZZ | MEMBER COMP., R. FR. WHEELHOUSE UPPER | 001 |
| 12 | 60623-T00-T00ZZ | BRACKET, R. FR. FENDER | 001 |
| 14 | 60630-T5B-000ZZ | BASE COMP., BATTERY SETTING | 001 |
| 15 | 60650-T08-K00ZZ | HOUSING COMP., R. FR. SHOCK ABSORBER | 001 |
| 16 | 60710-T14-M00ZZ | MEMBER COMP., L. FR. WHEELHOUSE UPPER | 001 |
| 17 | 60723-T00-T00ZZ | BRACKET, L. FR. FENDER | 001 |
| 18 | 60750-T08-K00ZZ | HOUSING COMP., L. FR. SHOCK ABSORBER | 001 |
| 19 | 60810-T08-K00ZZ | FRAME COMP., R. FR. SIDE | 001 |
| 20 | 60811-T08-305ZZ | FRAME SET, R. FR. SIDE | 001 |
| 21 | 60812-T9A-T00ZZ | PLATE, R. FR. SIDE BACK | 001 |
| 22 | 60843-T7A-300ZZ | BRACKET, R. FR. BUMPER BEAM EXTENSION | 001 |
| 23 | 60844-T9A-T00ZZ | PLATE, R. SIDE FRAME GUSSET | 001 |
| 24 | 60845-T08-K00ZZ | GUSSET, R. FR. SIDE FRAME | 001 |
| 25 | 60846-T5A-300ZZ | PATCH, R. BUMPER BEAM | 001 |
| 26 | 60847-T00-T00ZZ | BRACKET, WASHER TANK | 001 |
| 27 | 60848-T00-T00ZZ | SUPPORT, R. FR. BULKHEAD | 001 |
| 28 | 60910-T11-K00ZZ | FRAME COMP., L. FR. SIDE | 001 |
| 29 | 60911-T11-305ZZ | FRAME SET, L. FR. SIDE | 001 |
| 30 | 60912-T9A-T00ZZ | PLATE, L. FR. SIDE BACK | 001 |
| 31 | 60943-T7A-300ZZ | BRACKET, L. FR. BUMPER BEAM EXTENSION | 001 |
| 32 | 60944-T9A-T00ZZ | PLATE, L. SIDE FRAME GUSSET | 001 |
| 33 | 60945-T08-K00ZZ | GUSSET, L. FR. SIDE FRAME | 001 |
| 34 | 60946-T5A-300ZZ | PATCH, L. BUMPER BEAM | 001 |
| 35 | 60948-T00-T00ZZ | SUPPORT, L. FR. BULKHEAD | 001 |
| 36 | 61100-T00-T20ZZ | DASHBOARD COMP., UPPER | 001 |
| 37 | 61123-T00-T00ZZ | BRACKET, R. FR. FENDER | 001 |
| 38 | 61128-T00-T00ZZ | BRACKET, L. FR. FENDER | 001 |
| 39 | 61140-T00-T00ZZ | WINDSHIELD LOWER FRAME | 001 |
| 40 | 61500-T08-K00ZZ | DASHBOARD COMP., LOWER | 001 |
| 43 | 74290-T08-K01 | LID COMP., DASHBOARD UPPER | 001 |
| 45 | 90105-SV1-000 | BOLT-WASHER, 8X20 | 004 |
| 48 | 90122-TF0-000 | BOLT-WASHER, 6X14 (WITH GUIDE) | 005 |
| 52 | 93404-08016-08 | BOLT-WASHER, 8X16 | 004 |
