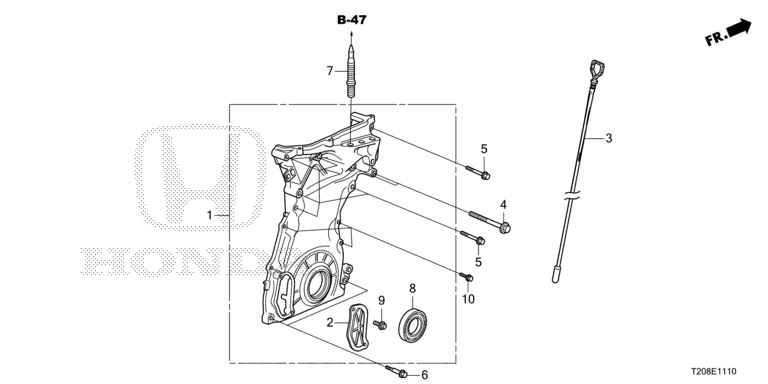

Chain Cover
| Ref No | Parts No. | Parts Name |
| 1 | 11410-59B-000 | Cam Chain Case |
| 2 | 11412-59B-000 | Chain Case Cover |
| 3 | 15650-59B-000 | OIL LEVEL GAUGE, Dipstick |
| 4 | 90004-5K0-A00 | BOLT, FLANGE, 8X92 |
| 5 | 90015-PF0-000 | BOLT, FLANGE, 8X53 |
| 6 | 90021-PWA-003 | BOLT, SPECIAL, 8X41 |
| 7 | 90041-5BA-A00 | BOLT, STUD, 14X90 |
| 8 | 91212-59B-003 | OIL SEAL, 43X58X7 |
| 9 | 95701-06012-08 | BOLT, FLANGE, 6X12 |
| 10 | 95701-06020-08 | BOLT, FLANGE, 6X20 |
