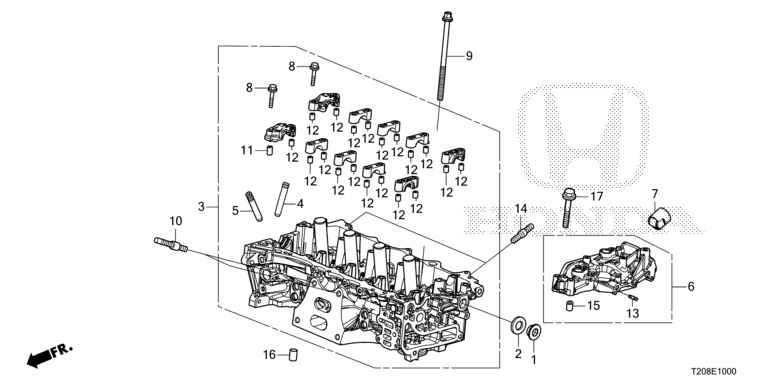

Cylinder Head
| Ref No | Parts No. | Parts Name |
| 1 | 11105-RNA-A00 | BOLT, SEALING, 20MM |
| 2 | 11106-RNA-A00 | WASHER, SEALING, 20MM |
| 3 | 12100-6A0-A00 | CYLINDER HEAD |
| 4 | 12204-PNA-305 | Intake Valve Guide (O.S.) |
| 5 | 12204-PNA-305 | Exhaust Valve Guide (O.S.) |
| 6 | 12270-59B-000 | High Pressure Fuel Pump Base |
| 7 | 14780-5A2-A01 | PUMP LIFTER |
| 8 | 90002-5R0-000 | BOLT, FLANGE, 7X35 |
| 9 | 90005-59B-003 | BOLT-WASHER, 10X172 |
| 10 | 90009-59B-003 | BOLT, STUD, 10X31 |
| 11 | 90701-5A2-A00 | DOWEL PIN, 9X14 |
| 12 | 90701-5R0-300 | DOWEL PIN, 9X10 |
| 13 | 92900-06014-1B | BOLT, STUD, 6X14 |
| 14 | 92900-08032-1B | BOLT, STUD, 8X32 |
| 15 | 94301-08100 | DOWEL PIN, 8X10 |
| 16 | 94301-14200 | DOWEL PIN, 14X20 |
| 17 | 95701-06045-08 | BOLT, FLANGE, 6X45 |
