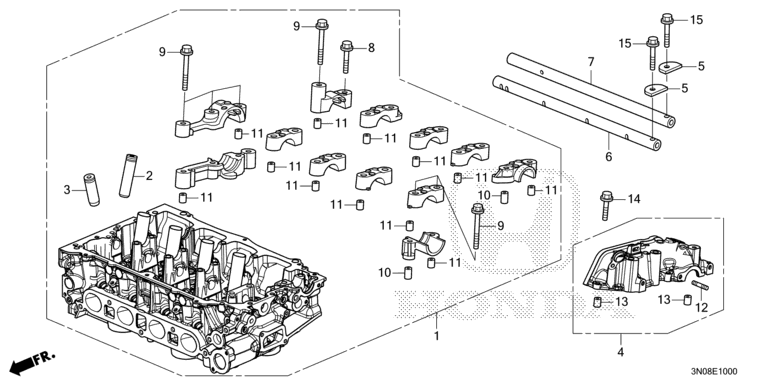

Cylinder Head
| Ref No. | Parts No. | Parts Name |
| 1 | 12100-5P6-J03 | CYLINDER HEAD |
| 2 | 12204-PJ7-305 | VALVE GUIDE, INTAKE (O.S.) (EXHAUST SIDE) |
| 3 | 12204-RBD-305 | VALVE GUIDE, EXHAUSTÂ (O.S.) |
| 4 | 12266-6Y0-000 | COVER COMP., SENSOR |
| 5 | 12280-5R0-003 | CAP, ROCKER SHAFT |
| 6 | 14631-5R0-000 | SHAFT COMP., INTAKE ROCKER |
| 7 | 14632-5R0-J00 | SHAFT COMP., EX. ROCKER |
| 8 | 90002-5R0-000 | BOLT, FLANGE, 7X35 |
| 9 | 90003-5R0-000 | BOLT, FLANGE, 7X55 |
| 10 | 90701-5A2-A00 | DOWEL PIN, 9X14 |
| 11 | 90701-5R0-300 | DOWEL PIN, 9X10 |
| 12 | 92900-06012-0B | BOLT, STUD, 6X12 |
| 13 | 94301-08100 | DOWEL PIN, 8X10 |
| 14 | 95701-06025-08 | BOLT, FLANGE, 6X25 |
| 15 | 95701-06035-08 | BOLT, FLANGE, 6X35 |
