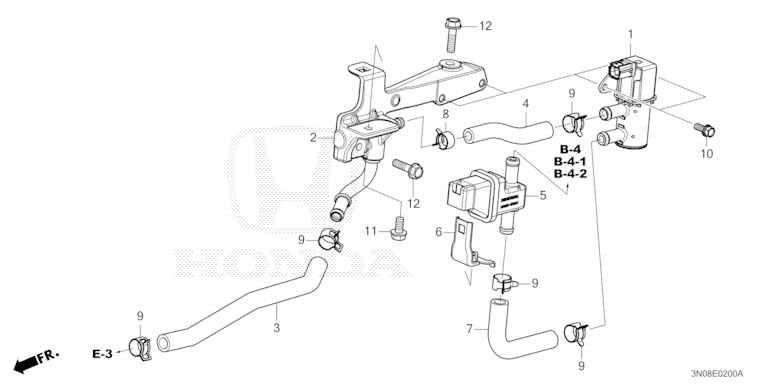

Purge Control Valve
| Ref No. | Parts No. | Parts Name |
| 1 | 36162-6Y0-J01 | PURGE CONTROL SOLENOID VALVE |
| 2 | 36163-6Y0-J00 | PURGE CONTROL SOLENOID BRACKET |
| 3 | 36164-6Y0-000 | PURGE TUBE A |
| 4 | 36165-6Y0-000 | PURGE TUBE B |
| 5 | 36166-6Y0-J01 | PURGE JOINT |
| 6 | 36167-6Y0-J00 | PURGE JOINT STAY |
| 7 | 36171-6Y0-000 | PURGE TUBE C |
| 8 | 91406-SAA-000 | CLAMP, TUBE (D12) |
| 9 | 91408-SDB-000 | CLAMP, TUBE (D13.0) |
| 10 | 93403-05014-08 | BOLT-WASHER, 5X14 |
| 11 | 95701-06012-08 | BOLT, FLANGE, 6X12 |
| 12 | 95701-06022-08 | BOLT, FLANGE, 6X22 |
