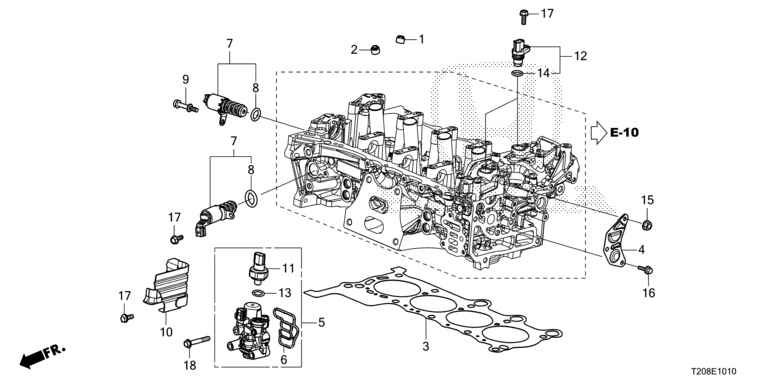

VTC Oil Control Valve
| Ref No | Parts No. | Parts Name |
| 1 | 12210-PZ1-004 | Intake Valve Seal (NOK) |
| 2 | 12211-PZ1-004 | Exhaust Valve Seal (NOK) |
| 3 | 12251-6A0-A01 | Cylinder Head Gasket (NIPPON) |
| 4 | 12513-59B-000 | CAMSHAFT HOLDER COVER |
| 5 | 15810-6A0-A01 | SPOOL VALVE |
| 6 | 15815-6A0-A01 | SPOOL VALVE FILTER |
| 7 | 15830-59B-004 | VTC OIL CONTROL VALVE |
| 8 | 15832-RAA-A01 | SEAL, OIL CONTROL VALVE |
| 9 | 15835-PNA-003 | BOLT, VTC SOLENOID |
| 10 | 32746-6A0-A01 | INSULATOR, OIL CONTROL VALVE |
| 11 | 37260-RNA-A01 | OIL PRESSURE SENSOR |
| 12 | 37510-59B-J01 | TDC SENSOR |
| 13 | 91319-PAA-A01 | O-RING, 13X1.5 |
| 14 | 91333-PNA-003 | O-RING, 15X1.9 |
| 15 | 94050-06080 | NUT, FLANGE, 6MM |
| 16 | 95701-06012-08 | BOLT, FLANGE, 6X12 |
| 17 | 95701-06016-08 | BOLT, FLANGE, 6X16 |
| 18 | 95701-06045-08 | BOLT, FLANGE, 6X45 |
