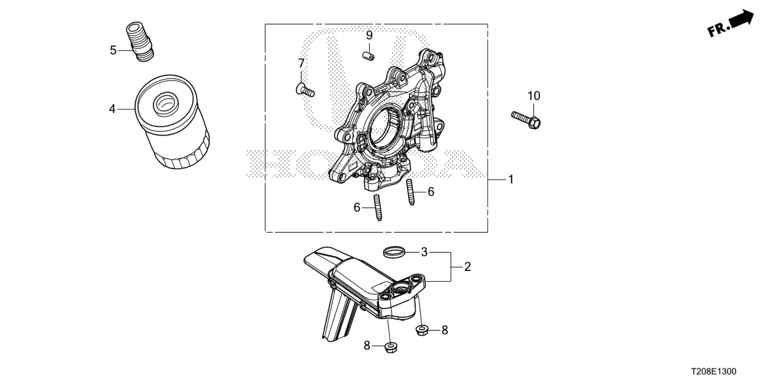

Oil Pump
| Ref No. | Parts No. | Parts Name |
| 1 | 15100-59B-003 | OIL PUMP |
| 2 | 15220-59B-005 | OIL STRAINER |
| 3 | 15221-5R0-005 | GASKET, OIL STRAINER |
| 4 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) |
| 5 | 90015-PH1-013 | OIL FILTER HOLDER |
| 6 | 90042-5R0-000 | BOLT, STUD, 6X34 |
| 7 | 93600-06016-0A | SCREW, FLAT, 6X16 |
| 8 | 94050-06080 | NUT, FLANGE, 6MM |
| 9 | 94301-08140 | DOWEL PIN, 8X14 |
| 10 | 95701-06030-08 | BOLT, FLANGE, 6X30 |
