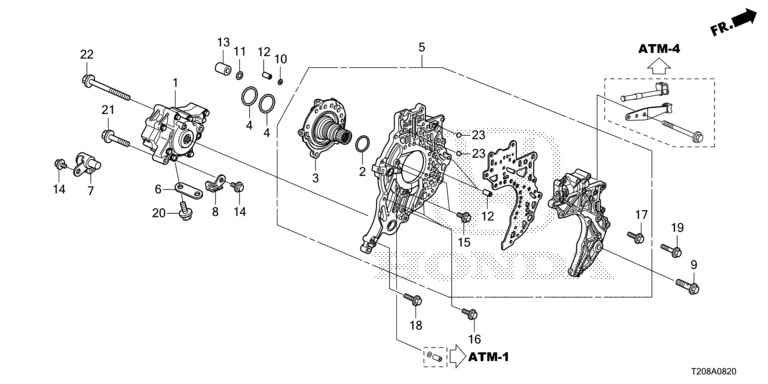

CVT Oil Pump
| Ref No | Parts No. | Parts Name |
| 1 | 25100-5LJ-013 | Transmission Fluid Pump |
| 2 | 25154-RFH-023 | RING, SEAL, 40MM |
| 3 | 25155-59C-010 | STATOR SHAFT |
| 4 | 25156-RJ2-003 | RING, SEAL (47MM) |
| 5 | 25180-59C-010 | FLANGE ASSY., STATOR SHAFT |
| 6 | 25181-RJ2-000 | OIL PUMP STAY |
| 7 | 28400-RJ2-004 | Shift Solenoid Valve O/P (A) |
| 8 | 28651-RJ2-000 | STAY, ATF TEMPERATURE SENSOR |
| 9 | 90014-RJ2-000 | BOLT, JOINT |
| 10 | 91311-PA9-004 | O-RING, 7.7X1.9 (NOK) |
| 11 | 91314-R9L-J01 | O-RING, 11.7X1.9 |
| 12 | 94301-08140 | DOWEL PIN, 8X14 |
| 13 | 94301-12160 | PIN A, DOWEL, 12X16 |
| 14 | 95701-06014-08 | BOLT, FLANGE, 6X14 |
| 15 | 95701-06020-08 | BOLT, FLANGE, 6X20 |
| 16 | 95701-06025-08 | BOLT, FLANGE, 6X25 |
| 17 | 95701-06030-08 | BOLT, FLANGE, 6X30 |
| 18 | 95701-06035-08 | BOLT, FLANGE, 6X35 |
| 19 | 95701-06045-08 | BOLT, FLANGE, 6X45 |
| 20 | 95701-08025-08 | BOLT, FLANGE, 8X25 |
| 21 | 95701-08050-08 | BOLT, FLANGE, 8X50 |
| 22 | 95701-08110-08 | BOLT, FLANGE, 8X110 |
| 23 | 96211-07000 | BALL, STEEL, #7 (7/32) |
