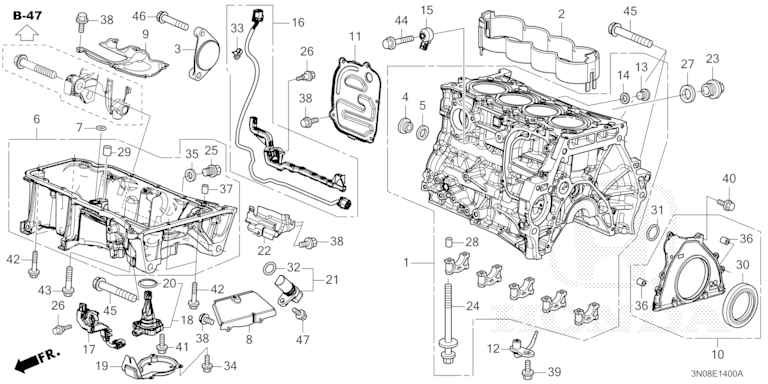

Cylinder Block
| Ref No. | Parts No. | Parts Name |
| 1 | 11000-6HA-600 | CYLINDER BLOCK |
| 2 | 11104-5R0-000 | COOLING CONTROL SPACER |
| 3 | 11105-6Y0-000 | BLOCK COVER |
| 4 | 11106-PWA-300 | BOLT, SEALING, 24MM |
| 5 | 11107-PWA-300 | WASHER, SEALING, 24MM |
| 6 | 11200-6Y0-000 | OIL PAN |
| 7 | 11203-RE2-E01 | O-RING, 17.8X2.4 (ARAI) |
| 8 | 11205-6Y0-003 | COVER COMP., OIL PAN |
| 9 | 11221-5R0-010 | BAFFLE PLATE |
| 10 | 11300-5R3-H00 | CASE COMP., OIL SEAL |
| 11 | 11850-5R0-000 | BREATHER COVER |
| 12 | 15280-6Y0-009 | OIL JET BODY |
| 13 | 15301-PE0-300 | BOLT, SEALING, 14MM |
| 14 | 15302-PE0-300 | WASHER, SEALING, 14MM |
| 15 | 30530-R1A-A01 | KNOCK SENSOR |
| 16 | 32113-6Y0-000 | SUB HARNESS, CRANK SENSOR |
| 21 | 37500-59B-J01 | CRANK SENSOR |
| 22 | 37501-5R0-000 | COVER, CRANK SENSOR |
| 23 | 90001-PM3-003 | BOLT, DRAIN PLUG, 28MM |
| 24 | 90008-5R0-003 | BOLT-WASHER, 10X75.5 |
| 25 | 90009-R70-A00 | BOLT, PLUG, 14MM |
| 26 | 90051-RGA-003 | BOLT, SPECIAL, 6X20.8 |
| 27 | 90401-PR4-000 | WASHER, SEALING, 28MM |
| 28 | 90702-PE0-000 | DOWEL PIN, 12X18 |
| 29 | 90705-PT0-000 | DOWEL PIN, 16X22 |
| 30 | 91214-5R3-H01 | OIL SEAL, 80X94X8 (NOK) |
| 31 | 91308-5R7-A01 | O-RING, 35.2X2.4 |
| 32 | 91333-PNC-006 | O-RING |
| 33 | 91506-RTA-003 | CLIP A, HARNESS BAND (DARK VIOLET) (129.4MM) |
| 35 | 94109-14000 | WASHER, DRAIN PLUG, 14MM |
| 36 | 94301-06100 | DOWEL PIN, 6X10 |
| 37 | 94301-12200 | DOWEL PIN, 12X20 |
| 38 | 95701-06012-08 | BOLT, FLANGE, 6X12 |
| 39 | 95701-06014-08 | BOLT, FLANGE, 6X14 |
| 40 | 95701-06016-08 | BOLT, FLANGE, 6X16 |
| 42 | 95701-06025-08 | BOLT, FLANGE, 6X25 |
| 43 | 95701-08030-08 | BOLT, FLANGE, 8X30 |
| 44 | 95701-08032-08 | BOLT, FLANGE, 8X32 |
| 45 | 95701-12060-08 | BOLT, FLANGE, 12X60 |
| 46 | 95801-10040-08 | BOLT, FLANGE, 10X40 |
| 47 | 90028-PNB-003 | BOLT, SPECIAL, 6X20.5 (GUIDE) |
