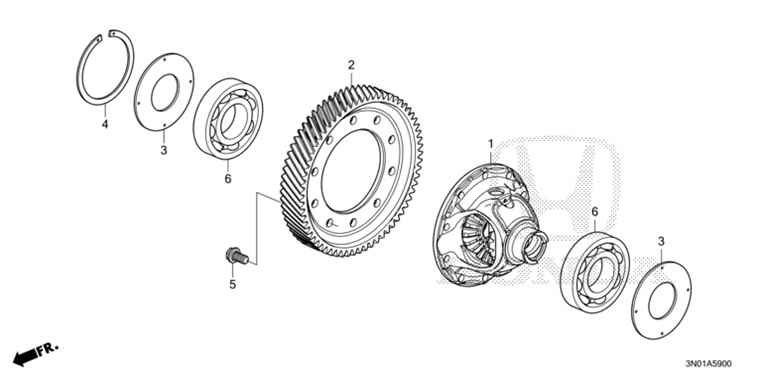

Differential
| Ref No | Part Number | Part Description |
| 1 | 41100-6JK-003 | Differential COMP |
| 2 | 41233-6JK-000 | Gear, Final Driven |
| 3 | 41381-60H-000 | Spacer 41X88X1 |
| 4 | 41441-60H-000 | Shim A 88MM 1.647 |
| 4 | 41442-60H-000 | Shim B 88MM 1.672 |
| 4 | 41443-60H-000 | Shim C 88MM 1.697 |
| 4 | 41444-60H-000 | Shim D 88MM 1.722 |
| 4 | 41445-60H-000 | Shim E 88MM 1.747 |
| 4 | 41446-60H-000 | Shim F 88MM 1.772 |
| 4 | 41447-60H-000 | Shim G 88MM 1.797 |
| 4 | 41448-60H-000 | Shim H 88MM 1.822 |
| 4 | 41449-60H-000 | Shim I 88MM 1.874 |
| 4 | 41450-60H-000 | Shim J 88MM 1.872 |
| 4 | 41451-60H-000 | Shim K 88MM 1.897 |
| 4 | 41452-60H-000 | Shim L 88MM 1.922 |
| 4 | 41453-60H-000 | Shim M 88MM 1.947 |
| 4 | 41454-60H-000 | Shim N 88MM 1.972 |
| 4 | 41455-60H-000 | Shim O 88MM 1.997 |
| 4 | 41456-60H-000 | Shim P 88MM 2.022 |
| 4 | 41457-60H-000 | Shim Q 88MM 2.047 |
| 4 | 41458-60H-000 | Shim R 88MM 2.072 |
| 4 | 41459-60H-000 | Shim S 88MM 2.097 |
| 4 | 41460-60H-000 | Shim T 88MM 2.122 |
| 4 | 41461-60H-000 | Shim U 88MM 2.147 |
| 4 | 41462-60H-000 | Shim V 88MM 2.172 |
| 4 | 41463-60H-000 | Shim W 88MM 2.197 |
| 4 | 41464-60H-000 | Shim X 88MM 2.222 |
| 4 | 41465-60H-000 | Shim Y 88MM 2.247 |
| 4 | 41466-60H-000 | Shim Z 88MM 2.272 |
| 4 | 41467-60H-000 | Shim AA 88MM 2.297 |
| 4 | 41468-60H-000 | Shim AB 88MM 2.322 |
| 5 | 90003-PA9-003 | Bolt, Flange 10MM |
| 6 | 91121-60H-006 | Bearing, Ball 40X88X20.5 |
