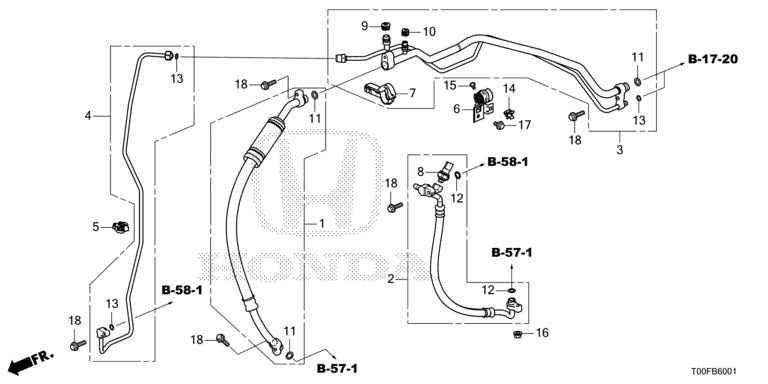

AIR CONDITIONER PIPES
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 80311-T08-K01 | HOSE SUCTION | 001 |
| 2 | 80315-T08-K01 | HOSE DISCHARGE | 001 |
| 3 | 80321-T13-K01 | PIPE COMP., AIR CONDITIONER | 001 |
| 4 | 80341-T08-K01 | PIPE COMP., RECEIVER | 001 |
| 5 | 80363-T5A-003 | CLIP, RECEIVER PIPE | 001 |
| 6 | 80365-T13-K00 | CLAMP, AIR CONDITIONER PIPE | 001 |
| 7 | 80365-T5A-003 | CLAMP B, AIR CONDITIONER PIPE | 001 |
| 8 | 80450-T2F-A01 | SENSOR ASSY., PRESSURE (SENSATA) | 001 |
| 9 | 80865-T6E-K01 | CAP COMP., VALVE (H) | 001 |
| 10 | 80866-TG2-K01 | CAP COMP., VALVE (L) | 001 |
| 11 | 80871-ST7-000 | O-RING (5/8″) | 003 |
| 12 | 80872-ST7-000 | O-RING (1/2″) | 002 |
| 13 | 80873-ST7-000 | O-RING, 8MM | 003 |
| 14 | 91548-TV2-E01 | CLIP, RECEIVER PIPE | 001 |
| 15 | 93500-04008-04 | SCREW, PAN, 4X8 | 001 |
| 16 | 94050-06080 | NUT, FLANGE, 6MM | 001 |
| 17 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 001 |
| 18 | 95701-06025-08 | BOLT, FLANGE, 6X25 | 005 |
