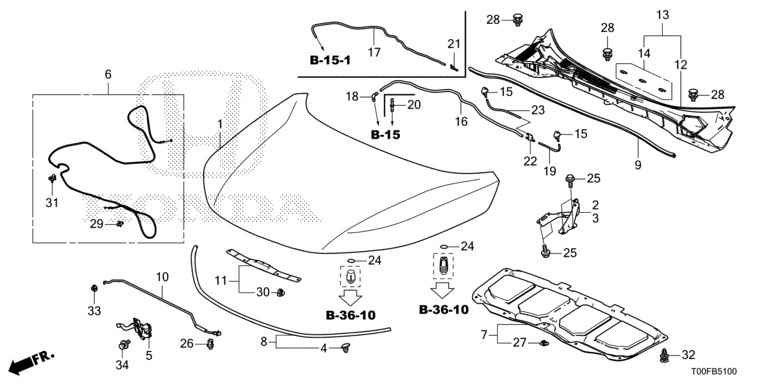

ENGINE HOOD
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 60100-T00-K00ZZ | ENGINE HOOD | 001 |
| 2 | 60120-T00-T00ZZ | HINGE COMP., R. HOOD | 001 |
| 3 | 60170-T00-T00ZZ | HINGE COMP., L. HOOD | 001 |
| 4 | 71507-S3E-003 | CLIP, MAIN SEAL, 6MM | 033 |
| 5 | 74120-T00-T01 | HOOD LOCK | 001 |
| 6 | 74130-T00-T02 | HOOD WIRE | 001 |
| 7 | 74141-T08-K00 | HOOD INSULATOR | 001 |
| 8 | 74142-T00-T60 | RUBBER, HOOD SEAL | 001 |
| 9 | 74143-T08-K01 | RUBBER, HOOD RR. SEAL | 001 |
| 10 | 74145-T00-T00 | STAY, HOOD OPEN | 001 |
| 11 | 74146-T00-T00 | PROTECTOR, HOOD | 001 |
| 13 | 74218-T08-K01 | COWL TOP SET, FR. | 001 |
| 14 | 74219-TSV-K00 | SEAL SET, HOOK | 001 |
| 15 | 76810-T9D-K01 | NOZZLE ASSY., FR. WASHER | 002 |
| 17 | 76825-T08-K01 | TUBE, 865MM | 001 |
| 19 | 76838-T08-K01 | TUBE, 170MM | 001 |
| 21 | 76830-T9D-K01 | JOINT Y, TUBE | 001 |
| 23 | 76833-T08-K01 | TUBE, 280MM | 001 |
| 24 | 85268-SA0-000 | PROTECTION, TAILGATE, 20MM (CIRCLE) | 004 |
| 25 | 90108-S0A-003 | BOLT, FLANGE, 6X15 | 008 |
| 26 | 90672-SNA-A01 | HOLDER, ROD (BLACK) | 001 |
| 27 | 91501-SWA-003 | CLIP, INSULATOR | 005 |
| 28 | 91501-TR0-003 | CLIP, INNER FENDER | 003 |
| 29 | 91505-TRN-H01 | CLIP, HOOD OPEN WIRE | 005 |
| 30 | 91520-SCC-003 | CLIP, HOOD SEAL RUBBER | 004 |
| 31 | 91549-TA0-003 | CLIP, HARNESS BAND (BLACK) (140.3MM) | 002 |
| 32 | 91550-S50-G01ZT | CLIP, TAILGATE (NH900L NEUTRAL BLACK) | 003 |
| 33 | 91604-T00-T01 | GROMMET, HOOD OPEN STAY | 001 |
| 34 | 93405-06016-04 | BOLT-WASHER, 6X16 | 003 |
