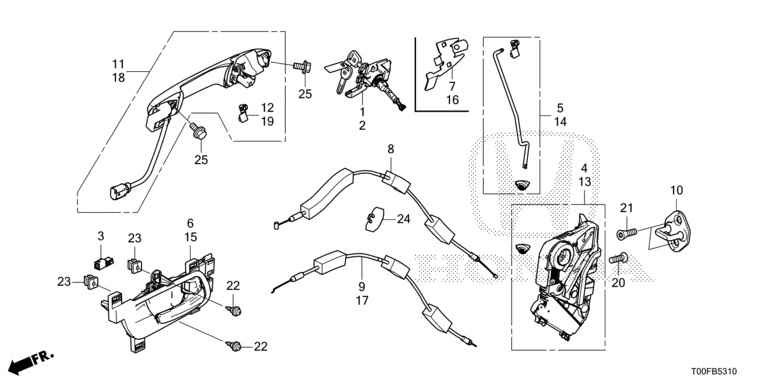

FRONT DOOR LOCKS
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 04920-T00-K01 | CYLINDER, R. DOOR | 001 |
| 4 | 72110-T00-K01 | LATCH ASSY., R. FR. DOOR POWER | 001 |
| 5 | 72113-T00-305 | ROD SET, R. FR. DOOR LATCH | 001 |
| 6 | 72120-T00-T11ZB | HANDLE ASSY., R. INSIDE (NH762X CHROME PLATING) | 001 |
| 8 | 72131-T00-T01 | CABLE, FR. INSIDE HANDLE | 002 |
| 9 | 72133-T00-T01 | CABLE, R. FR. DOOR LOCK | 001 |
| 10 | 72135-TG4-U01 | STRIKER ASSY., DOOR LOCK | 002 |
| 11 | 72140-T08-K11ZB | HANDLE ASSY., R. FR. DOOR OUTSIDE (SMART) (T99 UNPAINTED) | 001 |
| 12 | 72141-TZ5-004 | BUSH, R. JOINT (GREEN) | 001 |
| 13 | 72150-T00-K01 | LATCH ASSY., L. FR. DOOR POWER | 001 |
| 14 | 72153-T00-305 | ROD SET, L. FR. DOOR LATCH | 001 |
| 15 | 72160-T00-T11ZB | HANDLE ASSY., L. INSIDE (NH762X CHROME PLATING) | 001 |
| 16 | 72170-T5A-000 | BRACKET, L. FR. OUTER HANDLE | 001 |
| 17 | 72173-T00-T01 | CABLE, L. FR. DOOR LOCK | 001 |
| 18 | 72180-T08-K11ZB | HANDLE ASSY., L. FR. DOOR OUTSIDE (SMART) (T99 UNPAINTED) | 001 |
| 19 | 72181-TZ5-004 | BUSH, L. JOINT (GRAY) | 001 |
| 20 | 90103-TBA-000 | BOLT, DOOR LATCH, 6MM | 006 |
| 21 | 90120-T2A-000 | BOLT, LOCK STRIKER | 004 |
| 22 | 90141-SDA-000 | SCREW, TAPPING, 5X12 | 004 |
| 23 | 90662-TVA-A01 | GROMMET, SCREW, 5MM (SEAL) | 004 |
| 24 | 90691-TBA-A01 | CLIP, LOCK CABLE | 002 |
| 25 | 93403-06012-08 | BOLT-WASHER, 6X12 | 004 |
