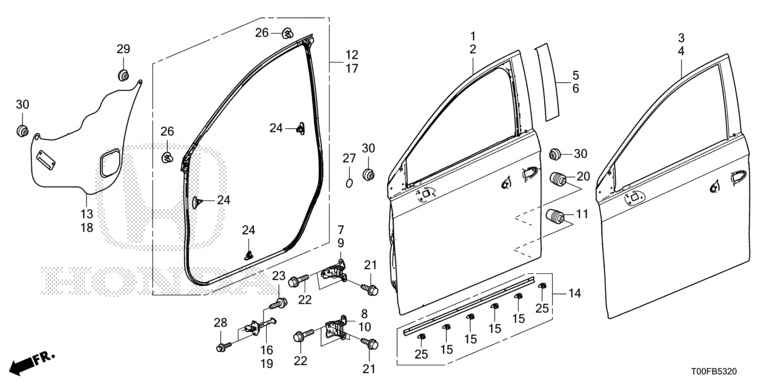

FRONT DOOR PANELS
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 67010-T08-K30ZZ | PANEL COMP., R. FR. DOOR | 001 |
| 2 | 67050-T08-K30ZZ | PANEL COMP., L. FR. DOOR | 001 |
| 3 | 67111-T00-T00ZZ | SKIN, R. FR. DOOR | 001 |
| 4 | 67151-T00-T00ZZ | SKIN, L. FR. DOOR | 001 |
| 5 | 67326-T08-K01 | TAPE, R. FR. DOOR SASH CENTER | 001 |
| 6 | 67366-T08-K01 | TAPE, L. FR. DOOR SASH CENTER | 001 |
| 7 | 67410-T9C-K01ZZ | HINGE, R. FR. DOOR UPPER | 001 |
| 8 | 67420-T9C-K01ZZ | HINGE, R. FR. DOOR LOWER | 001 |
| 9 | 67450-T9C-K01ZZ | HINGE, L. FR. DOOR UPPER | 001 |
| 10 | 67460-T9C-K01ZZ | HINGE, L. FR. DOOR LOWER | 001 |
| 11 | 72142-SM4-000 | STOPPER, DOOR | 002 |
| 12 | 72310-T00-T01 | WEATHERSTRIP, R. FR. DOOR | 001 |
| 13 | 72321-T00-T00 | SEAL, R. FR. DOOR HOLE | 001 |
| 16 | 72340-T08-K01 | CHECKER COMP., R. FR. DOOR | 001 |
| 17 | 72350-T00-T01 | WEATHERSTRIP, L. FR. DOOR | 001 |
| 18 | 72361-T00-T00 | SEAL, L. FR. DOOR HOLE | 001 |
| 19 | 72380-T08-K01 | CHECKER COMP., L. FR. DOOR | 001 |
| 20 | 75891-SA7-000 | STOPPER, DOOR | 002 |
| 21 | 90101-SZ3-000 | BOLT, FLANGE, 8X22 (8.5MM) | 008 |
| 22 | 90102-S3N-003 | BOLT, FLANGE, 8X24.5 (10.5MM) | 008 |
| 22 | 90102-SFA-305 | BOLT, FLANGE, 8X18 (SERVICE) | (8) |
| 23 | 90141-TY0-000 | BOLT, FLANGE, 8X22 | 002 |
| 24 | 90651-TP8-003 | CLIP, DOOR WEATHERSTRIP | 066 |
| 26 | 91561-T4G-003 | CLIP, DOOR WEATHERSTRIP | 004 |
| 27 | 91657-TSV-K01 | SEAL C, DOOR PANEL HOLE | 002 |
| 28 | 93405-06016-08 | BOLT-WASHER, 6X16 | 004 |
| 29 | 95551-11000 | PLUG, BLIND, 11MM | 002 |
| 30 | 95551-25000 | PLUG, BLIND, 25MM | 006 |
