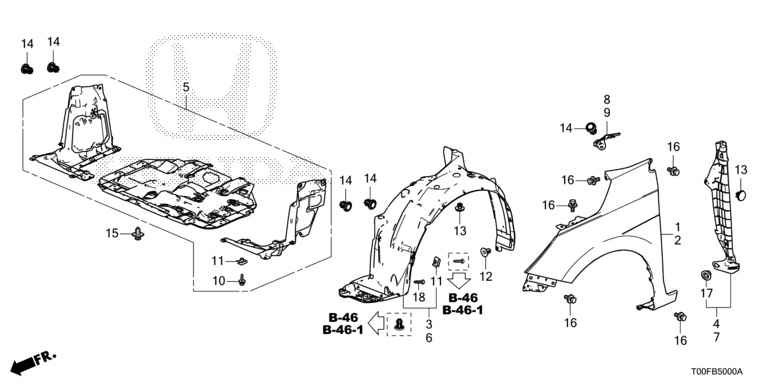

FRONT FENDERS
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 60211-T00-T00ZZ | PANEL, R. FR. FENDER | 001 |
| 2 | 60261-T00-T00ZZ | PANEL, L. FR. FENDER | 001 |
| 3 | 74100-T08-K60 | FENDER ASSY., R. FR. INNER | 001 |
| 4 | 74105-T00-T00 | ENCLOSURE, R. FR. FENDER | 001 |
| 5 | 74110-T08-K00 | ENGINE UNDER COVER | 001 |
| 6 | 74150-T08-K60 | FENDER ASSY., L. FR. INNER | 001 |
| 7 | 74155-T00-T00 | ENCLOSURE, L. FR. FENDER | 001 |
| 8 | 74213-T00-T00 | COVER, R. FR. FENDER | 001 |
| 9 | 74223-T00-T00 | COVER, L. FR. FENDER | 001 |
| 10 | 90114-SE0-000 | SCREW, TAPPING, 5X20 | 006 |
| 11 | 90308-SB2-013 | NUT, SUSPENSION, 5MM | 008 |
| 12 | 90682-TG2-K01 | CLIP, TAPPING SCREW, 5MM | 008 |
| 13 | 91501-TR0-003 | CLIP, INNER FENDER | 024 |
| 14 | 91505-31X-K01 | CLIP, BUMPER (ITW) | 006 |
| 15 | 91514-TG1-T01 | CLIP, UNDER COVER | 005 |
| 16 | 93405-06016-08 | BOLT-WASHER, 6X16 | 010 |
| 17 | 95551-25000 | PLUG, BLIND, 25MM | 002 |
| 18 | 90103-TA0-000 | SCREW, TAPPING, 5X20 | 002 |
