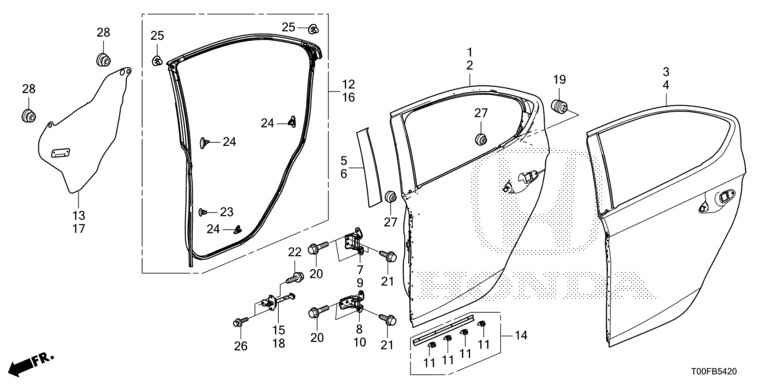

REAR DOOR PANELS
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 67510-T08-K10ZZ | PANEL COMP., R. RR. DOOR | 001 |
| 2 | 67550-T08-K10ZZ | PANEL COMP., L. RR. DOOR | 001 |
| 3 | 67611-T00-T00ZZ | SKIN, R. RR. DOOR | 001 |
| 4 | 67651-T00-T00ZZ | SKIN, L. RR. DOOR | 001 |
| 5 | 67825-T08-K01 | TAPE, R. RR. DOOR SASH CENTER | 001 |
| 6 | 67865-T08-K01 | TAPE, L. RR. DOOR SASH CENTER | 001 |
| 7 | 67910-T9C-K01ZZ | HINGE, R. RR. DOOR UPPER | 001 |
| 8 | 67920-T9C-K01ZZ | HINGE, R. RR. DOOR LOWER | 001 |
| 9 | 67950-T9C-K01ZZ | HINGE, L. RR. DOOR UPPER | 001 |
| 10 | 67960-T9C-K01ZZ | HINGE, L. RR. DOOR LOWER | 001 |
| 12 | 72810-T00-T01 | WEATHERSTRIP, R. RR. DOOR | 001 |
| 13 | 72821-T00-T00 | SEAL, R. RR. DOOR HOLE | 001 |
| 15 | 72840-T08-K01 | CHECKER COMP., R. RR. DOOR | 001 |
| 16 | 72850-T00-T01 | WEATHERSTRIP, L. RR. DOOR | 001 |
| 17 | 72861-T00-T00 | SEAL, L. RR. DOOR HOLE | 001 |
| 18 | 72880-T08-K01 | CHECKER COMP., L. RR. DOOR | 001 |
| 19 | 75891-SA7-000 | STOPPER, DOOR | 002 |
| 20 | 90102-S3N-003 | BOLT, FLANGE, 8X24.5 (10.5MM) | 008 |
| 20 | 90102-SFA-305 | BOLT, FLANGE, 8X18 (SERVICE) | (8) |
| 21 | 90101-SZ3-000 | BOLT, FLANGE, 8X22 (8.5MM) | 008 |
| 22 | 90141-TY0-000 | BOLT, FLANGE, 8X22 | 002 |
| 23 | 90651-THA-003 | CLIP, DOOR WEATHERSTRIP | 020 |
| 24 | 90651-TP8-003 | CLIP, DOOR WEATHERSTRIP | 064 |
| 25 | 91561-T4G-003 | CLIP, DOOR WEATHERSTRIP | 004 |
| 26 | 93405-06016-08 | BOLT-WASHER, 6X16 | 004 |
| 27 | 95551-11000 | PLUG, BLIND, 11MM | 004 |
| 28 | 95551-20000 | PLUG, BLIND, 20MM | 004 |
