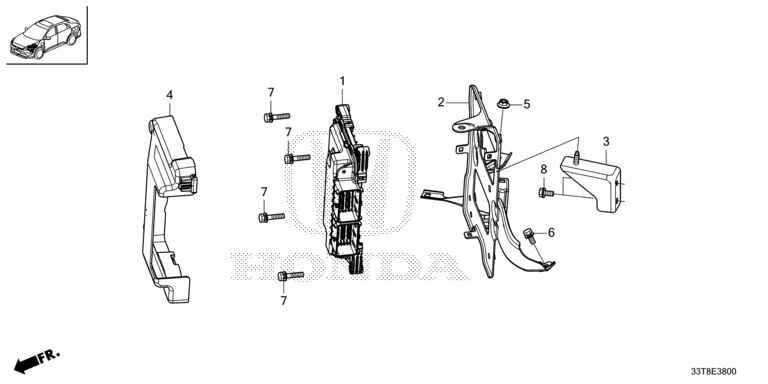

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 1K200-6TT-T03 | MANAGEMENT ELECTRONIC CONTROL UNIT (REWRITABLE) | 001 |
| 2 | 1K210-6PA-H00 | BRACKET COMP., MANAGEMENT ELECTRONIC CONTROL UNIT (A) | 001 |
| 3 | 1K220-6PA-H00 | BRACKET COMP., MANAGEMENT ELECTRONIC CONTROL UNIT (B) | 001 |
| 4 | 1K230-6PA-H00 | COVER, MANAGEMENT ELECTRONIC CONTROL UNIT | 001 |
| 5 | 90301-SP0-003 | NUT, PAINT CUTTING, 6MM | 001 |
| 6 | 93403-06016-08 | BOLT-WASHER, 6X16 | 001 |
| 7 | 93403-06028-08 | BOLT-WASHER, 6X28 | 004 |
| 8 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 002 |
