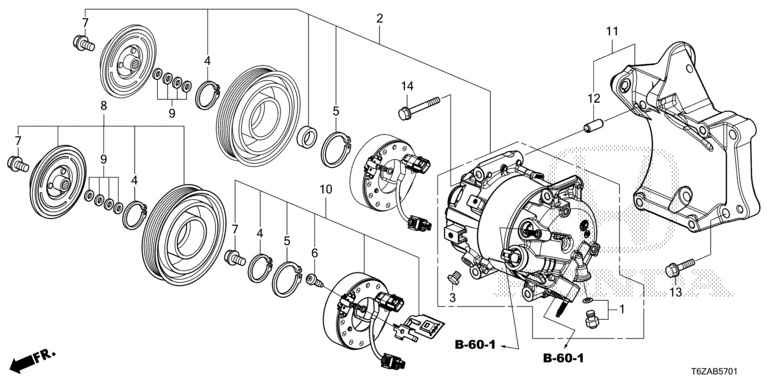

AC Compressor
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 38801-64A-A01 | VALVE SUB ASSY., SAFETY | 001 |
| 2 | 38810-5J6-A24 | COMPRESSOR COMP. (ENGINE NO.) | 001 |
| 2 | 38810-5J6-A26 | COMPRESSOR COMP. (ENGINE NO.) | 001 |
| 3 | 38811-RPY-E01 | BOLT-WASHER, DRAIN | 001 |
| 4 | 38812-5J6-A01 | C-RING, PULLEY | 001 |
| 5 | 38813-RPY-A11 | C-RING, COIL | 001 |
| 6 | 38827-5J6-A01 | SCREW, 5MM | 001 |
| 7 | 38829-5J6-A11 | BOLT, FLANGE (M6) (10.9) | 001 |
| 8 | 38900-5J6-A11 | CLUTCH SET | 001 |
| 9 | 38912-5J6-A01 | WASHER SET (M6) | 001 |
| 10 | 38924-5J6-A21 | COIL SET | 001 |
| 11 | 38930-5J6-A50 | BRACKET COMP., COMPRESSOR | 001 |
| 12 | 90702-5J6-A01 | DOWEL PIN, 10X25 | 002 |
| 13 | 95701-10050-08 | BOLT, FLANGE, 10X50 | 004 |
| 14 | 95801-08100-08 | BOLT, FLANGE, 8X100 | 004 |
