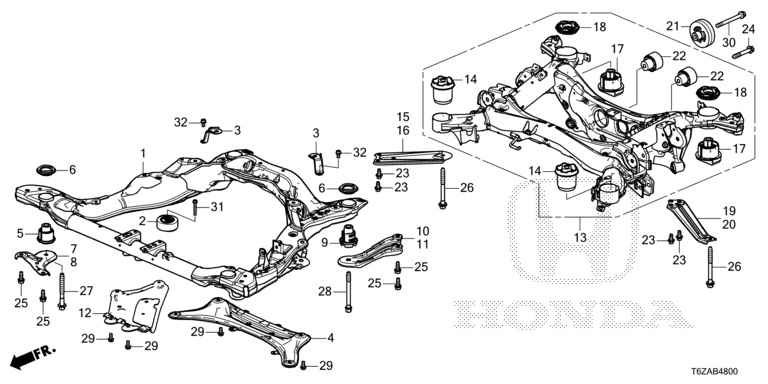

Front Sub Frame Rear Beam
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 50200-T6Z-A03 | SUB FRAME COMP., FR. SUSPENSION | 001 |
| 2 | 50205-TZ5-A01 | DAMPER, FR. SUB FRAME DYNAMIC | 001 |
| 3 | 50220-TZ5-A00 | STIFFENER, STEERING GEAR BOX | 002 |
| 4 | 50240-TZ5-A02 | STIFFENER, FR. SUB FRAME | 001 |
| 5 | 50260-TZ5-A01 | RUBBER, FR. SUB FRAME FR. MOUNTING INSULATOR (LOWER) | 002 |
| 6 | 50261-TZ5-A01 | RUBBER, FR. SUB FRAME MOUNTING INSULATOR (UPPER) | 004 |
| 7 | 50265-TZ5-A01 | STAY, FR. SUB FRAME MOUNTING (FR. R.) | 001 |
| 8 | 50266-TZ5-A01 | STAY, FR. SUB FRAME MOUNTING (FR. L.) | 001 |
| 9 | 50270-TZ5-A01 | RUBBER, FR. SUB FRAME RR. MOUNTING INSULATOR (LOWER) | 002 |
| 10 | 50275-TZ5-A01 | STAY, FR. SUB FRAME MOUNTING (RR. R.) | 001 |
| 11 | 50276-TZ5-A01 | STAY, FR. SUB FRAME MOUNTING (RR. L.) | 001 |
| 12 | 50290-T6Z-A00 | GUARD, OIL PAN | 001 |
| 13 | 50300-T6Z-A01 | SUB FRAME ASSY., RR. SUSPENSION (4WD) | 001 |
| 14 | 50360-T6Z-A01 | RUBBER, RR. SUB FRAME FR. MOUNTING | 002 |
| 15 | 50367-T6Z-A00 | STAY, R. RR. SUB FRAME (C) | 001 |
| 16 | 50368-T6Z-A00 | STAY, L. RR. SUB FRAME (C) | 001 |
| 17 | 50370-TZ5-A01 | RUBBER, RR. SUB FRAME RR. MOUNTING | 002 |
| 18 | 50371-TZ5-A01 | RUBBER, RR. SUB FRAME RR. STOPPER UPPER | 002 |
| 19 | 50377-TZ5-A01 | STAY D, RR. SUB FRAME (R.) | 001 |
| 20 | 50378-TZ5-A01 | STAY D, RR. SUB FRAME (L.) | 001 |
| 21 | 50410-T6Z-A01 | DAMPER, RR. SUB FRAME DYNAMIC | 001 |
| 22 | 50730-TZ6-A01 | RUBBER, R. RR. DIFFERENTIAL RR. MOUNTING | 002 |
| 23 | 90160-T0A-A01 | BOLT, FLANGE, 12X24 | 008 |
| 24 | 90160-TZ6-A00 | BOLT, FLANGE, 14X85 | 001 |
| 25 | 90161-SHJ-A00 | BOLT, FLANGE, 12X30 | 008 |
| 26 | 90162-TYR-A01 | BOLT, FLANGE, 14X144 | 004 |
| 27 | 90165-TK8-A00 | BOLT, FLANGE, 14X125 | 002 |
| 28 | 90165-TZ5-A10 | BOLT, FLANGE, 14X140 | 002 |
| 29 | 90166-T6Z-A00 | BOLT, FLANGE, 10X23 | 008 |
| 30 | 90198-TGS-000 | BOLT, FLANGE, 14X142 | 001 |
| 31 | 95701-08050-05 | BOLT, FLANGE, 8X50 | 001 |
| 32 | 95701-10016-08 | BOLT, FLANGE, 10X16 | 002 |
