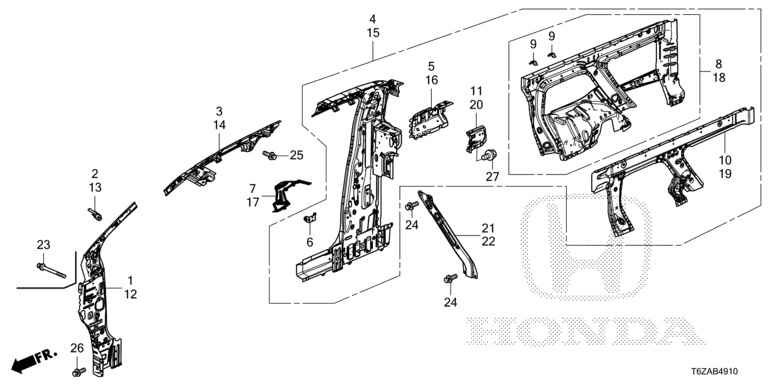

Inner Panels
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 64110-TG7-305ZZ | PILLAR COMP., R. FR. INNER UPPER | 001 |
| 2 | 64126-TG7-A01 | SEPARATOR, R. FR. PILLAR INNER UPPER | 001 |
| 3 | 64210-TG7-305ZZ | RAIL COMP., R. ROOF SIDE | 001 |
| 4 | 64300-T6Z-305ZZ | PANEL COMP., R. RR. INSIDE | 001 |
| 5 | 64315-T6Z-A00ZZ | REINFORCEMENT, R. QUARTER PILLAR | 001 |
| 6 | 64317-T6Z-A00ZZ | BRACKET, RR. FENDER LOWER (FR.) | 002 |
| 7 | 64325-T6Z-A02 | SEPARATOR, R. QUARTER PILLAR OUTER LOWER | 001 |
| 8 | 64330-T6Z-A00ZZ | WHEELHOUSE COMP., R. RR. (OUTER) | 001 |
| 9 | 64337-T6Z-A00ZZ | BRACKET, RR. INNER FENDER STIFFENER | 004 |
| 10 | 64340-T6Z-A00ZZ | WHEELHOUSE COMP., R. RR. (INNER) | 001 |
| 11 | 64382-T6Z-A00ZZ | GUSSET, R. QUARTER PILLAR INNER (RR.) | 001 |
| 12 | 64510-TG7-305ZZ | PILLAR COMP., L. FR. INNER UPPER | 001 |
| 13 | 64526-TG7-A01 | SEPARATOR, L. FR. PILLAR INNER UPPER | 001 |
| 14 | 64610-TG7-305ZZ | RAIL COMP., L. ROOF SIDE | 001 |
| 15 | 64700-T6Z-305ZZ | PANEL COMP., L. RR. INSIDE | 001 |
| 16 | 64715-T6Z-A00ZZ | REINFORCEMENT, L. QUARTER PILLAR | 001 |
| 17 | 64725-T6Z-A02 | SEPARATOR, L. QUARTER PILLAR OUTER LOWER | 001 |
| 18 | 64730-T6Z-A00ZZ | WHEELHOUSE COMP., L. RR. (OUTER) | 001 |
| 19 | 64740-T6Z-A00ZZ | WHEELHOUSE COMP., L. RR. (INNER) | 001 |
| 20 | 64782-T6Z-A00ZZ | GUSSET, L. QUARTER PILLAR INNER (RR.) | 001 |
| 21 | 66511-T6Z-A00ZZ | GUSSET, R. RR. PANEL | 001 |
| 22 | 66551-T6Z-A00ZZ | GUSSET, L. RR. PANEL | 001 |
| 23 | 90104-TK4-A00 | BOLT-WASHER, 8X115 (LEFT HAND SIDE) | 001 |
| 24 | 93404-08020-08 | BOLT-WASHER, 8X20 | 010 |
| 25 | 93404-08025-08 | BOLT-WASHER, 8X25 | 002 |
| 26 | 93405-08020-05 | BOLT-WASHER, 8X20 | 004 |
| 27 | 96300-10016-08 | BOLT, FLANGE, 10X16 | 002 |
