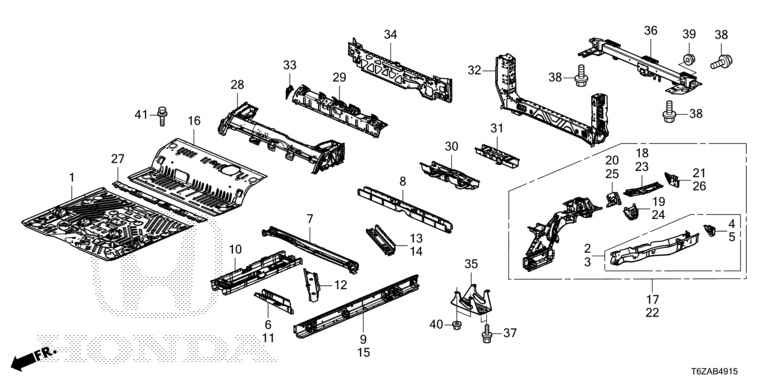

Floor Panels
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 04651-T6Z-A00ZZ | PANEL SET, FR. FLOOR | 001 |
| 2 | 04653-T6Z-A01ZZ | FRAME B SET, R. RR. | 001 |
| 3 | 04654-T6Z-A50ZZ | FRAME B SET, L. RR. | 001 |
| 4 | 04656-T6Z-A00ZZ | CAP SET, R. RR. FRAME END | 001 |
| 5 | 04657-T6Z-A00ZZ | CAP SET, L. RR. FRAME END | 001 |
| 6 | 65110-TZ5-A00ZZ | CROSSMEMBER COMP. A, R. FR. FLOOR | 001 |
| 7 | 65120-TZ5-A00ZZ | CROSSMEMBER COMP. B, FR. FLOOR | 001 |
| 8 | 65130-TZ5-A01ZZ | CROSSMEMBER COMP. C, FR. FLOOR | 001 |
| 9 | 65140-T6Z-305ZZ | SILL COMP., R. INSIDE | 001 |
| 10 | 65150-T6Z-A00ZZ | FRAME COMP., CENTER | 001 |
| 11 | 65160-TZ5-A00ZZ | CROSSMEMBER COMP. A, L. FR. FLOOR | 001 |
| 12 | 65170-TZ5-A00ZZ | CROSSMEMBER COMP. D, L. FR. FLOOR | 001 |
| 13 | 65180-T6Z-A00ZZ | CROSSMEMBER COMP., R. FR. FLOOR (E) | 001 |
| 14 | 65186-T6Z-A00ZZ | CROSSMEMBER COMP., L. FR. FLOOR (E) | 001 |
| 15 | 65190-T6Z-305ZZ | SILL COMP., L. INSIDE | 001 |
| 16 | 65511-T6Z-A00ZZ | PANEL, MIDDLE FLOOR | 001 |
| 17 | 65610-T6Z-315ZZ | FRAME COMP., R. RR. | 001 |
| 18 | 65632-T6Z-A00ZZ | STIFFENER B, R. RR. FRAME UPPER | 001 |
| 19 | 65636-T6Z-A00ZZ | GUSSET, R. WHEELHOUSE LOWER OUTER | 001 |
| 20 | 65637-T6Z-A00ZZ | GUSSET, R. LOWER (B) | 001 |
| 21 | 65647-T6Z-A00ZZ | EXTENSION, R. RR. FRAME | 001 |
| 22 | 65660-T6Z-306ZZ | FRAME COMP., L. RR. | 001 |
| 23 | 65682-T6Z-A00ZZ | STIFFENER B, L. RR. FRAME UPPER | 001 |
| 24 | 65686-T6Z-A00ZZ | GUSSET, L. WHEELHOUSE LOWER OUTER | 001 |
| 25 | 65687-T6Z-A00ZZ | GUSSET, L. LOWER (B) | 001 |
| 26 | 65697-T6Z-A00ZZ | EXTENSION, L. RR. FRAME | 001 |
| 27 | 65701-T6Z-A00ZZ | CROSSMEMBER, FR. (RR. SEAT) | 001 |
| 28 | 65710-T6Z-A01ZZ | CROSSMEMBER COMP., MIDDLE FLOOR | 001 |
| 29 | 65720-T6Z-305ZZ | CROSSMEMBER COMP., RR. (RR. SEAT) | 001 |
| 30 | 65730-T6Z-315ZZ | CROSSMEMBER COMP., MIDDLE FLOOR (C) | 001 |
| 31 | 65740-T6Z-A00ZZ | CROSSMEMBER COMP., RR. FLOOR (D) | 001 |
| 32 | 65750-T6Z-A01ZZ | CROSSMEMBER COMP., RR. FLOOR | 001 |
| 33 | 65782-T6Z-A01 | SEPARATOR, RR. SEAT CROSSMEMBER (RR.) | 002 |
| 34 | 65800-T6Z-A00ZZ | CROSSMEMBER COMP., RR. CABIN (LOWER) | 001 |
| 35 | 74647-TZ5-A01 | BRACE C, CROSSMEMBER | 001 |
| 36 | 74690-T6Z-A11 | HITCH ASSY., TRAILER | 001 |
| 37 | 90101-SE3-003 | BOLT-WASHER, 8X23.5 | 004 |
| 38 | 90169-S3V-A00 | BOLT, FLANGE, 12X30 | 006 |
| 39 | 90321-SMG-000 | NUT, PAINT CUTTING, 10MM | 002 |
| 40 | 90361-TZ5-A00 | NUT, PAINT CUTTING, 6MM | 004 |
| 41 | 93404-08025-08 | BOLT-WASHER, 8X25 | 004 |
