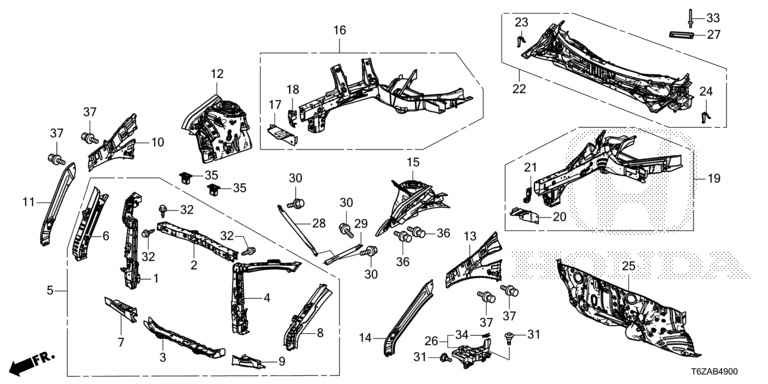

Front Bulkhead

Honda Ridgeline

Ref No. Parts No. Parts Name Unit Qty
1 04601-TG7-A02ZZ PANEL SET, R. FR. BULKHEAD 001
2 04602-T6Z-A00ZZ FRAME SET, FR. BULKHEAD UPPER 001
3 04603-TG7-A00ZZ CROSSMEMBER SET, FR. BULKHEAD LOWER 001
4 04611-TG7-A01ZZ PANEL SET, L. FR. BULKHEAD 001
5 60400-T6Z-305ZZ BULKHEAD COMP., FR. 001
6 60422-TG7-305ZZ MEMBER SET, R. FR. BULKHEAD SIDE 001
7 60425-TZ5-315ZZ EXTENSION SET, R. FR. BULKHEAD LOWER CROSSMEMBER 001
8 60472-TG7-315ZZ MEMBER SET, L. FR. BULKHEAD SIDE 001
9 60475-TZ5-325ZZ EXTENSION SET, L. FR. BULKHEAD LOWER CROSSMEMBER 001
10 60613-TG7-A00ZZ MEMBER, R. FR. WHEELHOUSE UPPER 001
11 60616-TZ5-A00ZZ MEMBER, R. FR. WHEELHOUSE UPPER (B) 001
12 60650-T6Z-A00ZZ HOUSING COMP., R. FR. SHOCK ABSORBER 001
13 60713-TG7-A00ZZ MEMBER, L. FR. WHEELHOUSE UPPER 001
14 60716-TZ5-A00ZZ MEMBER, L. FR. WHEELHOUSE UPPER (B) 001
15 60750-TZ5-A02ZZ HOUSING COMP., L. FR. SHOCK ABSORBER 001
16 60810-T6Z-405ZZ FRAME COMP., R. FR. SIDE 001
17 60823-TZ5-305ZZ MEMBER, R. FR. SIDE FRAME LOWER 001
18 60835-TZ5-A00ZZ BRACKET, R. FR. BUMPER BEAM SIDE 001
19 60910-T6Z-305ZZ FRAME COMP., L. FR. SIDE 001
20 60923-TZ5-305ZZ MEMBER, L. FR. SIDE FRAME LOWER 001
21 60935-TZ5-A00ZZ BRACKET, L. FR. BUMPER BEAM SIDE 001
22 61100-TG7-A00ZZ DASHBOARD COMP., UPPER 001
23 61123-TG7-A00ZZ BRACKET, R. FENDER 001
24 61128-TG7-A00ZZ BRACKET, L. FENDER 001
25 61500-TG7-A21ZZ DASHBOARD COMP., LOWER 001
26 74190-THR-A00 BASE, BATTERY SETTING 001
27 74250-TZ5-A00 COVER, VIN PLATE 001
28 74721-TZ5-A01 BRACE, R. FR. BULKHEAD SIDE 001
29 74771-TZ5-A00 BRACE, L. FR. BULKHEAD SIDE 001
30 90104-SEP-A00 BOLT, FLANGE, 8X22 004
31 90107-TZ5-A00 BOLT, SHOULDER, 8X30 004
32 90108-S0A-003 BOLT, FLANGE, 6X15 008
33 90671-TK4-A00 RIVET, VIN PLATE 002
34 90675-SA5-003 NUT, CLIP, 6MM 001
35 91548-TZ5-A02 LATCH, ENGINE COVER 006
36 93405-06016-05 BOLT-WASHER, 6X16 (LEFT HAND SIDE) 002
37 93405-06016-08 BOLT-WASHER, 6X16 014
