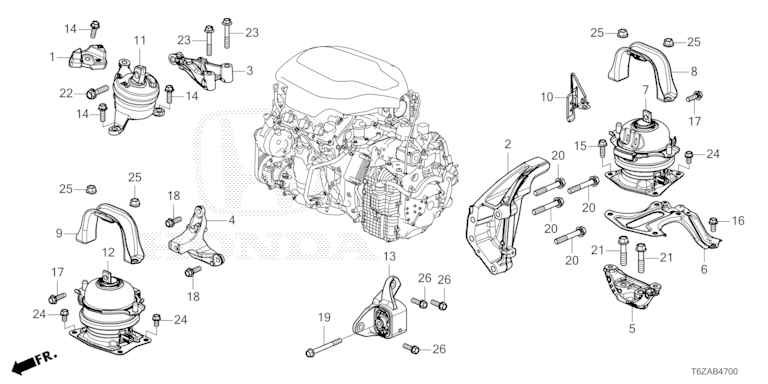

Engine Mounts
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 50420-TZ5-A00 | MASS, SIDE ENGINE MOUNTING | 001 |
| 2 | 50610-TZ5-A01 | BRACKET, RR. ENGINE MOUNTING | 001 |
| 3 | 50620-TZ5-A01 | BRACKET, SIDE ENGINE MOUNTING | 001 |
| 4 | 50630-TZ5-A01 | BRACKET, FR. ENGINE MOUNTING | 001 |
| 5 | 50680-TZ5-A01 | BRACKET, RR. ENGINE MOUNTING BASE | 001 |
| 6 | 50685-TG7-A00 | BRACKET, ENGINE UPPER MOUNTING BASE (RR.) | 001 |
| 7 | 50810-TZ5-A03 | RUBBER ASSY., ENGINE RR. MOUNTING (ACM) | 001 |
| 8 | 50815-TG7-A01 | STOPPER, ENGINE RR. MOUNTING | 001 |
| 9 | 50815-TZ5-A02 | STOPPER, ENGINE RR. MOUNTING (FOR FR.) | 001 |
| 10 | 50816-T6Z-A00 | SHIELD, ENGINE RR. MOUNTING HEAT | 001 |
| 11 | 50820-TZ5-A02 | RUBBER ASSY., ENGINE SIDE MOUNTING | 001 |
| 12 | 50830-TZ5-A03 | RUBBER ASSY., ENGINE FR. MOUNTING (ACM) | 001 |
| 13 | 50850-TZ5-A01 | RUBBER ASSY., TRANSMISSION MOUNTING | 001 |
| 14 | 90103-SV4-013 | BOLT, FLANGE, 10X30 | 003 |
| 15 | 90161-T2F-A01 | BOLT, FLANGE, 10X30 | 002 |
| 16 | 90163-S5A-000 | BOLT, FLANGE, 10X20 | 001 |
| 17 | 90163-SDA-A01 | BOLT, FLANGE, 10X35 | 002 |
| 18 | 90163-SDB-A00 | BOLT, FLANGE, 10X30 | 003 |
| 19 | 90163-SJH-000 | BOLT, FLANGE, 10X103 | 001 |
| 20 | 90163-TA0-A00 | BOLT, FLANGE, 12X75 | 004 |
| 21 | 90164-TM8-000 | BOLT, FLANGE, 12X55 | 002 |
| 22 | 90165-SDA-A00 | BOLT, FLANGE, 12X45 | 001 |
| 23 | 90168-TA1-A00 | BOLT, FLANGE, 10X60 | 002 |
| 24 | 90178-SDA-A00 | BOLT, FLANGE, 10X16 | 006 |
| 25 | 90371-SAA-010 | NUT, FLANGE, 12MM | 004 |
| 26 | 95701-10030-08 | BOLT, FLANGE, 10X30 | 003 |
