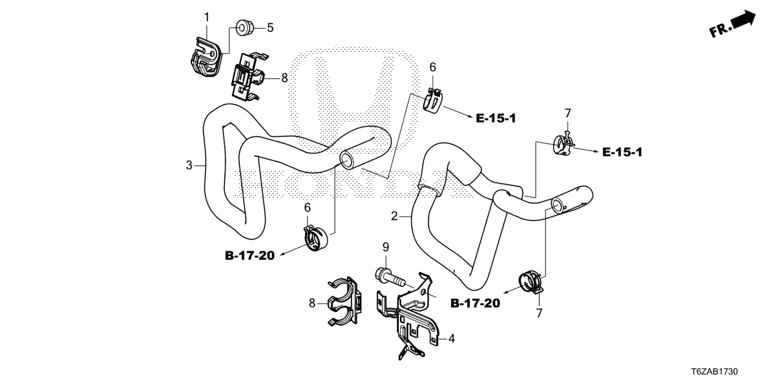

Water Hose
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 79719-SJC-A00 | BRACKET, HEATER HOSE DASHBOARD | 001 |
| 2 | 79721-TZ5-A10 | HOSE, WATER IN. | 001 |
| 3 | 79725-TZ5-A11 | HOSE ASSY., WATER OUTLET | 001 |
| 4 | 79751-TZ5-A00 | STAY COMP., HEATER HOSE | 001 |
| 5 | 90361-SV4-003 | NUT, PAINT CUTTING, 6MM | 001 |
| 6 | 90661-TK8-A01 | CLIP, WATER HOSE, 27MM | 002 |
| 7 | 91405-TK8-A01 | CLIP, WATER HOSE, 24MM | 002 |
| 8 | 91557-SJC-A00 | CLIP, HEATER HOSE | 002 |
| 9 | 95701-08016-08 | BOLT, FLANGE, 8X16 | 001 |
