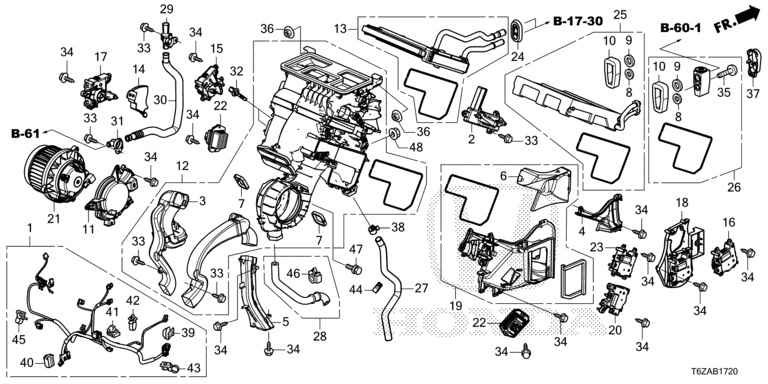

Heater Unit
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 32157-TG7-A50 | HARNESS, AIR CONDITIONER WIRE | 001 |
| 2 | 79021-TZ5-A41 | COVER, HEATER CORE | 001 |
| 3 | 79022-TZ5-A42 | DUCT, HEATER DRIVER | 001 |
| 4 | 79024-TG7-A42 | COVER, EVAPORATOR PIPE | 001 |
| 5 | 79025-TZ5-A41 | DUCT, HEATER ASSISTANT (B) | 001 |
| 6 | 79026-TZ5-A41 | INSERT, DIFFUSER | 001 |
| 7 | 79029-TZ5-A42 | PACKING, SECOND HEATER DUCT | 002 |
| 8 | 79030-TZ5-A41 | WASHER, SEAL (1/2″) | 001 |
| 9 | 79031-TZ5-A41 | WASHER, SEAL (5/8″) | 001 |
| 10 | 79033-TYA-A41 | SEAL, TXV | 001 |
| 11 | 79034-TZ5-A41 | COVER, RR. BLOWER MOTOR | 001 |
| 12 | 79106-TG7-A71 | HEATER SUB ASSY. | 001 |
| 13 | 79115-TG7-A41 | CORE SUB ASSY., HEATER | 001 |
| 14 | 79129-TZ5-A41 | BRACKET, DRIVER TEMPERATURE | 001 |
| 15 | 79140-T6Z-A41 | MOTOR ASSY., HEATER DEFROSTER | 001 |
| 16 | 79140-T6Z-A51 | MODE MOTOR | 001 |
| 17 | 79160-T6Z-A41 | MOTOR ASSY., TEMPERATURE DRIVER | 001 |
| 18 | 79170-T6Z-A41 | MOTOR TEMPERATURE PASSENGER | 001 |
| 19 | 79205-TG7-A41 | DUCT SET, JOINT | 001 |
| 20 | 79240-T6Z-A41 | MOTOR ASSY., RR. MODE | 001 |
| 21 | 79315-TZ5-A61 | MOTOR ASSY., RR. FAN | 001 |
| 22 | 79330-TZ5-A51 | TRANSISTOR, POWER | 002 |
| 23 | 79350-T6Z-A41 | MOTOR ASSY., TEMPERATURE RR. | 001 |
| 24 | 79731-TK4-A00 | GROMMET, HEATER PIPE | 001 |
| 25 | 80215-TYA-A81 | EVAPORATOR SUB ASSY. | 001 |
| 26 | 80221-TYA-A51 | VALVE SUB ASSY., EXPANSION | 001 |
| 27 | 80271-TZ5-A00 | HOSE, DRAIN | 001 |
| 28 | 80272-TZ5-A00 | HOSE, RR. DRAIN | 001 |
| 29 | 80534-TZ5-A41 | ASPIRATOR | 001 |
| 30 | 80535-TZ5-A41 | HOSE, ASPIRATOR | 001 |
| 31 | 80536-TZ5-A41 | PORT, ASPIRATOR | 001 |
| 32 | 80560-TZ5-A51 | THERMISTOR, AIR CONDITIONER | 002 |
| 33 | 90127-TZ5-A01 | SCREW, TAPPING, 4X16 | N |
| 34 | 90128-TZ5-A01 | SCREW, TAPPING, 4X16 | N |
| 35 | 90132-TZ5-A01 | SCREW (M5) | 002 |
| 36 | 90321-SV4-003 | NUT-WASHER, 6MM (PAINT CUTTING) | 002 |
| 37 | 90660-TZ5-A01 | GUIDE, SHROUD | 001 |
| 38 | 90661-S2A-003 | CLIP, DRAIN HOSE | 001 |
| 39 | 91533-STK-003 | CLIP, COUPLER (NATURAL) | 001 |
| 40 | 91534-SWA-003 | CLIP, COUPLER (DARK GRAY) | 001 |
| 41 | 91536-STK-003 | CLIP, RELAY HOLDER (NATURAL) | 001 |
| 42 | 91540-TA0-003 | CLIP, HARNESS BAND (NATURAL) (100.1MM) | 006 |
| 43 | 91548-SV4-003 | CLIP, BAND (6MM BOSS) (NATURAL) (127MM) | 005 |
| 44 | 91549-SE0-003 | HOLDER, DRAIN HOSE | 001 |
| 45 | 91549-TA0-003 | CLIP, HARNESS BAND (BLACK) (140.3MM) | 005 |
| 46 | 91591-TK5-A01 | CLIP, FUEL TUBE (NATURAL) | 001 |
| 47 | 93405-06016-00 | BOLT-WASHER, 6X16 | 001 |
| 48 | 94071-08080 | NUT-WASHER, 8MM | 001 |
