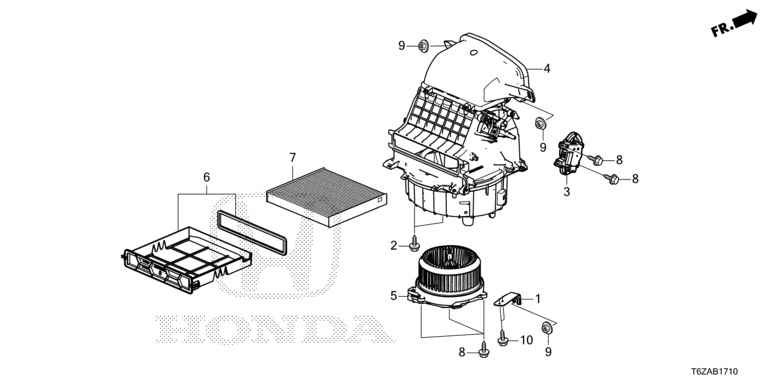

Heater Blower
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 79105-TZ5-A00 | STAY, HVAC | 001 |
| 2 | 79121-TZ5-A41 | SCREW-WASHER, 6X25 | 002 |
| 3 | 79260-T6Z-A41 | MOTOR ASSY., FRESH & RECIRCULAR | 001 |
| 4 | 79305-TZ5-A42 | BLOWER SUB ASSY. | 001 |
| 5 | 79307-TZ5-A61 | MOTOR SUB ASSY., FR. BLOWER | 001 |
| 6 | 80291-TZ5-A41 | TRAY SET, FILTER | 001 |
| 7 | 80292-TZ5-A41 | ELEMENT, FILTER | 001 |
| 8 | 90128-TZ5-A01 | SCREW, TAPPING, 4X16 | 005 |
| 9 | 90321-SV4-003 | NUT-WASHER, 6MM (PAINT CUTTING) | 003 |
| 10 | 93904-24420 | SCREW, TAPPING, 4X16 | 002 |
