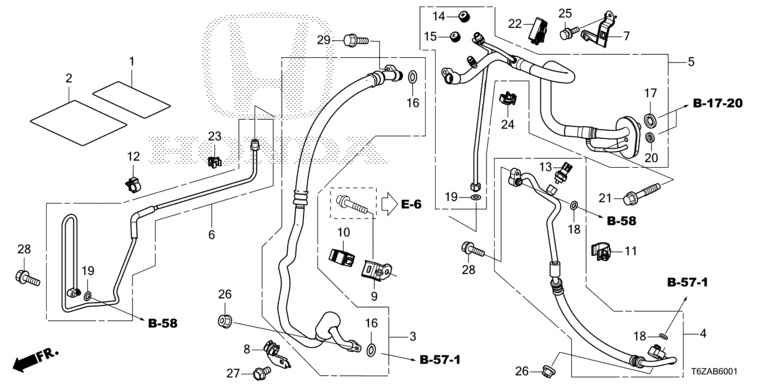

AC Pipe
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 2 | 80050-TYR-A01 | LABEL, AIR CONDITIONER | 001 |
| 3 | 80313-TG7-A11 | HOSE COMP., SUCTION | 001 |
| 4 | 80315-T6Z-A01 | HOSE COMP., DISCHARGE | 001 |
| 5 | 80330-THR-A01 | EXCHANGER, INTERNAL HEAT | 001 |
| 6 | 80341-TZ5-A01 | PIPE COMP., RECEIVER | 001 |
| 7 | 80360-TG7-A00 | STAY COMP., AIR CONDITIONER PIPE | 001 |
| 8 | 80362-TYR-A00 | CLAMP, SUCTION PIPE | 001 |
| 9 | 80362-TZ5-A00 | STAY B, AIR CONDITIONER PIPE | 001 |
| 10 | 80382-SLJ-003 | CLIP, AIR CONDITIONER PIPE | 001 |
| 11 | 80382-TZ5-A00 | CLIP, DISCHARGE HOSE | 001 |
| 12 | 80383-TZ5-A00 | CLIP, RECEIVER PIPE | 001 |
| 13 | 80450-T2F-A01 | SENSOR ASSY., PRESSURE (SENSATA) | 001 |
| 14 | 80865-TG7-A01 | CAP, VALVE (H) (CONTITECH) | 001 |
| 15 | 80866-TG7-A01 | CAP, VALVE (L) (CONTITECH) | 001 |
| 16 | 80871-ST7-000 | O-RING (5/8″) | 002 |
| 17 | 80871-TK8-A01 | SEAL (5/8″) | 001 |
| 18 | 80872-ST7-000 | O-RING (1/2″) | 002 |
| 19 | 80873-ST7-000 | O-RING, 8MM | 002 |
| 20 | 80873-TK8-A01 | SEAL, 8MM | 001 |
| 21 | 90001-TK8-A00 | BOLT, FLANGE, 8X42 (GUIDE) | 001 |
| 22 | 91536-SZW-003 | CLIP, AIR CONDITIONER PIPE | 001 |
| 23 | 91548-S5A-003 | CLIP, RECEIVER PIPE | 001 |
| 24 | 91548-SR3-003 | CLIP, 8MM | 001 |
| 25 | 93405-06012-04 | BOLT-WASHER, 6X12 | 001 |
| 26 | 94050-06080 | NUT, FLANGE, 6MM | 002 |
| 27 | 95701-06012-04 | BOLT, FLANGE, 6X12 | 001 |
| 28 | 95701-06025-04 | BOLT, FLANGE, 6X25 | 002 |
| 29 | 95701-06025-08 | BOLT, FLANGE, 6X25 | 001 |
