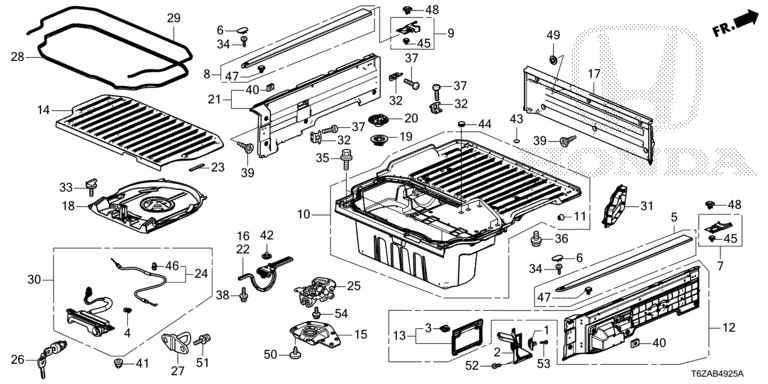

Bed Floor Cargo

HEADBOARD BED

Ref No. Parts No. Parts Name Unit Qty
3 71509-SZA-A01 LOCK, BUMPER GARNISH 002
4 72117-S04-003 HOLDER, ROD (YELLOW) 001
5 74420-T6Z-A01 GARNISH ASSY., R. BED RAIL 001
6 74421-T6Z-A00 CAP, BED RAIL 002
7 74422-T6Z-A00 GARNISH ASSY., R. FR. BED RAIL 001
8 74460-T6Z-A01 GARNISH ASSY., L. BED RAIL 001
9 74462-T6Z-A00 GARNISH ASSY., L. FR. BED RAIL 001
10 74710-T6Z-A00 FLOOR BED 001
11 74714-SJC-A00 GUIDE, SPARE TIRE TRAY 002
12 74720-T6Z-A00 LINING ASSY., R. BED SIDE 001
13 74722-T6Z-A00 LID, BED SIDE LINING 001
14 74730-T6Z-A00 LID COMP., CARGO 001
15 74735-SJC-A00ZA COVER, CARGO LID INNER *NH70 * (NH70 BLACK GLOSS 20) 001
16 74740-T6Z-A01 HINGE COMP., R. CARGO LID 001
17 74750-T6Z-A00 HEADBOARD, BED 001
18 74761-T6Z-A00 TRAY, SPARE TIRE 001
19 74762-SJC-A00 ADAPTER, TRUNK PLUG 001
20 74763-SJC-A00 PLUG, TRUNK 001
21 74770-T6Z-A00 LINING ASSY., L. BED SIDE 001
22 74790-T6Z-A01 HINGE COMP., L. CARGO LID 001
23 74826-SJC-A00 CUSHION, CARGO LID 016
24 74830-T6Z-A00 CABLE, CARGO LID LOCK 001
25 74850-SJC-A02 LOCK ASSY., CARGO LID 001
26 74861-SJC-A01 CYLINDER, CARGO LID 001
27 74862-S84-A01 STRIKER ASSY., TRUNK 001
28 74865-T6Z-A01 WEATHERSTRIP, CARGO LID 001
29 74866-T6Z-A01 WEATHERSTRIP, CARGO LID EDGE 001
30 74880-T6Z-A02 OPENER ASSY., CARGO LID 001
31 75450-SJC-A01 OUTLET ASSY., RR. AIR 001
32 84614-SJC-A00 HOOK, TIE DOWN 008
33 90101-SJC-A00 BOLT, SPARE TIRE TRAY 002
34 90103-TA0-000 SCREW, TAPPING, 5X20 002
35 90104-SJC-A00 BOLT, 12X60 002
36 90104-T6Z-A01 BOLT, ANTI-CROSS THREAD (12X27) 004
37 90106-SJC-000 BOLT, FLANGE TORX, 8X30 016
38 90109-SJC-A00 BOLT, SPECIAL, 6X40 004
39 90109-T6Z-A00 BOLT, SHOULDER, 6X17.9 020
40 90302-SA4-003 NUT, SPRING, 4MM 002
41 90307-S03-000 NUT, SPOILER CAP, 6MM 002
42 90308-SJC-A01 NUT-WASHER, CAP, 6MM 004
43 90604-SJC-A00ZB PLUG, HINGE ATTACH *NH533 * (NH533 BP DARK GRAY) 004
44 90605-SJC-A00ZB PLUG, BAFFLE ATTACH *NH533 * (NH533 BP DARK GRAY) 005
45 91504-SCV-A00 CLIP B, GARNISH 004
46 91504-SL0-003 CLIP, HOOD OPEN WIRE 001
47 91504-T6Z-A01 CLIP B, GARNISH 014
48 91512-SX0-003 CLIP, INNER FENDER 002
49 91613-SR3-003 GROMMET, SUB FRAME, 15MM 001
50 91656-SEP-A01 CLIP, PLUG, 8MM 007
51 93404-06016-07 BOLT-WASHER, 6X16 002
54 95701-06016-07 BOLT, FLANGE, 6X16 002
