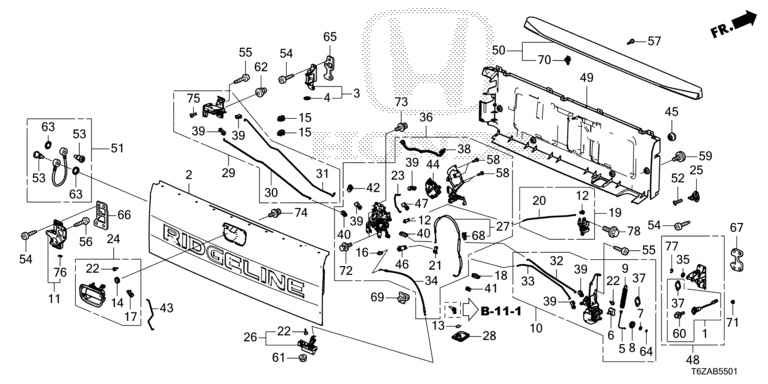

Tailgate

68100-T6Z-A10ZZ

Ref No. Parts No. Parts Name Unit Qty
1 35406-SJC-305 SWITCH SET, TAILGATE 001
2 68100-T6Z-A10ZZ TAILGATE 001
3 68210-SJC-A02 STRIKER ASSY., L. TAILGATE UPPER 001
4 68211-SJC-A00 NUT, PUSH 001
5 68733-SJC-A01 CABLE ASSY. 001
6 68734-SJC-A00 BUMPER 001
7 68735-SJC-A00 WASHER, PLAIN (12MM) 001
8 68736-SJC-A00 PULLEY 001
9 68737-SJC-A01 SPRING 001
10 68741-T6Z-315 HINGE SET., R. TAILGATE LOWER 001
11 68750-T6Z-A03 HINGE COMP., L. TAILGATE LOWER 001
12 72116-SV4-003 SNAP (ORANGE) 002
13 72123-SR0-003 RING, OUTSIDE HANDLE 001
14 72133-SJC-A01 PACKING 002
15 72137-SJC-A01 HOLDER, ROD (DIA5.0) 002
16 72139-SR0-A01 SNAP (VIOLET) 001
17 72141-SD4-004 BUSH, R. JOINT 001
18 72627-THR-A21 CLIP, CABLE HOLDING DOOR (BLACK) 001
19 74801-SJC-A01 LOCK ASSY., R. TAILGATE UPPER 001
20 74802-SJC-A01 ROD, R. UPPER TAILGATE LOCK 001
21 74807-T6Z-A01 HOLDER, CABLE (DIA 3.5) 001
22 74811-SJC-A01 STOPPER 003
23 74811-T6Z-A02 ROD, TAILGATE LOCK 001
24 74811-T6Z-A51ZB HANDLE ASSY., TAILGATE UPPER *NH883P* (NH883P PLATINUM WHITE PEARL) 001
24 74811-T6Z-A51ZE HANDLE ASSY., TAILGATE UPPER *NH797M* (NH797M MODERN STEEL METALLIC) 001
24 74811-T6Z-A51ZF HANDLE ASSY., TAILGATE UPPER *NH731P* (NH731P CRYSTAL BLACK PEARL) 001
24 74811-T6Z-A51ZH HANDLE ASSY., TAILGATE UPPER *R580M* (R580M RADIANT RED METALLIC II) 001
24 74811-T6Z-A51ZJ HANDLE ASSY., TAILGATE UPPER *NH877P* (NH877P SONIC GRAY PEARL) 001
24 74811-T6Z-A51ZK HANDLE ASSY., TAILGATE UPPER *NH932M* (NH932M SOLAR REFLECTION SILVER METALLIC) 001
24 74811-T6Z-A51ZM HANDLE ASSY., TAILGATE UPPER *G545M* (G545M ASH GREEN METALLIC) 001
25 74813-SJC-A01 STRIKER ASSY., R. TAILGATE UPPER 001
26 74815-SJC-A01 HANDLE ASSY., TAILGATE LOWER 001
27 74835-T6Z-A01 CABLE ASSY., TAILGATE UNLOCK 001
28 74839-T6Z-A00 COVER, OPENER 001
29 74851-T6Z-A11 LOCK ASSY., L. TAILGATE UPPER 001
30 74852-T6Z-A01 ROD, L. UPPER TAILGATE LOCK 001
31 74853-T6Z-A11 ROD, L. UPPER TAILGATE SENSOR 001
32 74863-SJC-A02 ROD, R. LOWER TAILGATE LOCK 001
33 74864-T6Z-A01 ROD, R. LOWER TAILGATE SENSOR 001
34 74867-SJC-A01 CABLE, TAILGATE LOWER HANDLE 001
35 74869-SJC-A01 WASHER, 14X8 001
36 74870-T6Z-A13 SYNCHRONIZER ASSY., TAILGATE (POWER LOCK) 001
37 74871-SJC-A01 SHIM, SWITCH 004
38 74871-T6Z-A01 HARNESS, SYNCHRONIZER 001
39 74874-SJC-A02 HOLDER, ROD (5.0MM) 006
40 74874-SJC-A11 HOLDER, ROD (DIA5.0) 002
41 74874-SJC-A21 HOLDER, ROD (DIA5.0) 001
42 74874-T6Z-A01 SNAP, SLIDING 001
43 74875-T6Z-A20 ROD, TAILGATE UPPER HANDLE 001
44 74876-T6Z-A02 ACTUATOR ASSY. 001
45 74877-SJC-A00 STOPPER, TAILGATE 001
46 74877-T6Z-A01 SNAP, SLIDING 001
47 74878-T6Z-A01 HOLDER, ROD (DIA 5.0) 001
48 74879-SJC-305 STRIKER, R. TAILGATE LOWER 001
49 74890-T6Z-A10 CLADDING, TAILGATE 001
50 74895-T6Z-A02 GARNISH ASSY., TAILGATE TOP 001
51 74910-SJC-A02 CABLE ASSY., TAILGATE SUPPORT 001
52 90101-T6Z-A00 SCREW, FLAT, 8X20 (TORX) 002
53 90105-T6Z-000 BOLT, TORX SHOULDER, 8X28 002
54 90106-SJC-000 BOLT, FLANGE TORX, 8X30 012
55 90106-T6Z-A00 BOLT, FLANGE SHOULDER (8X30) 007
56 90107-T6Z-A00 BOLT, FLANGE SHOULDER (10X30) 003
57 90107-T6Z-A10 SCREW, TAPPING SHOULDER (4X20) 004
58 90108-T6Z-A01 SCREW, TAPPING, 4X10 004
59 90109-T6Z-A00 BOLT, SHOULDER, 6X17.9 007
60 90110-SJC-A00 SCREW-WASHER, 5X16 002
61 90301-SP0-003 NUT, PAINT CUTTING, 6MM 002
62 90306-SJC-A01 NUT, CAP FLANGE, 8MM 001
63 90501-SJC-A00 WASHER, BOLT RETENSION 002
64 90651-SJC-A00 CIRCLIP, EXTERNAL (11) 001
65 91401-SJC-A00 PLATE, L. TAILGATE UPPER STRIKER 001
66 91402-SJC-A00 PLATE, L. TAILGATE LOWER HINGE 001
67 91403-SJC-A00 PLATE, R. TAILGATE LOWER STRIKER 001
68 91504-SDA-003 CLIP, HOOD OPEN WIRE (BLACK) 003
69 91507-S5A-003 CLIP, TRUNK OPENER CABLE 001
70 91513-SJC-A01 CLIP, GARNISH 018
71 91535-STK-003 CLIP, COUPLER (DARK BLUE) 001
72 93401-06012-08 BOLT-WASHER, 6X12 002
73 93403-06012-08 BOLT-WASHER, 6X12 004
74 93405-06012-08 BOLT-WASHER, 6X12 002
75 93600-04008-1H SCREW, FLAT, 4X8 002
76 94540-06017 E-RING, 6MM 001
77 94540-06029 E-RING, 6MM 001
78 95701-08016-08 BOLT, FLANGE, 8X16 002
