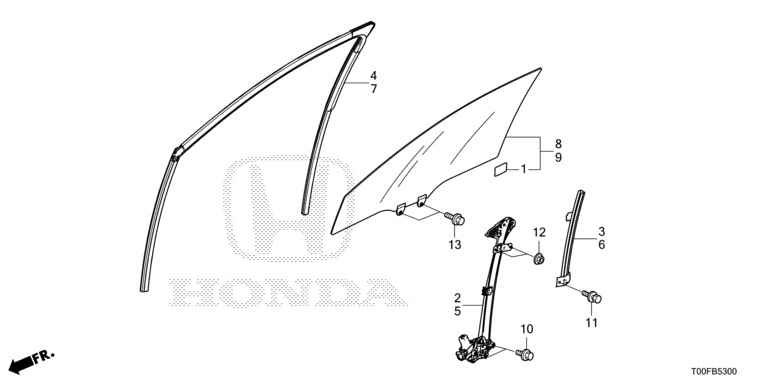

FRONT DOOR GLASS
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 2 | 72210-T00-T01 | REGULATOR ASSY., R. FR. DOOR (POWER) | 001 |
| 3 | 72231-T00-T01 | SASH, R. FR. DOOR CENTER LOWER | 001 |
| 4 | 72235-T00-T01 | RUNCHANNEL, R. FR. DOOR | 001 |
| 5 | 72250-T00-T01 | REGULATOR ASSY., L. FR. DOOR (POWER) | 001 |
| 6 | 72271-T00-T01 | SASH, L. FR. DOOR CENTER LOWER | 001 |
| 7 | 72275-T00-T01 | RUNCHANNEL, L. FR. DOOR | 001 |
| 8 | 73300-T08-K01 | GLASS ASSY., R. FR. DOOR (GREEN) (SAINT GOBAIN) | 001 |
| 9 | 73350-T08-K01 | GLASS ASSY., L. FR. DOOR (GREEN) (SAINT GOBAIN) | 001 |
| 10 | 90021-TG2-000 | BOLT, FLANGE, 6X10 | 004 |
| 11 | 90132-SD4-000 | BOLT-WASHER, 6X16 | 002 |
| 12 | 94050-06080 | NUT, FLANGE, 6MM | 004 |
| 13 | 95701-06016-08 | BOLT, FLANGE, 6X16 | 004 |
