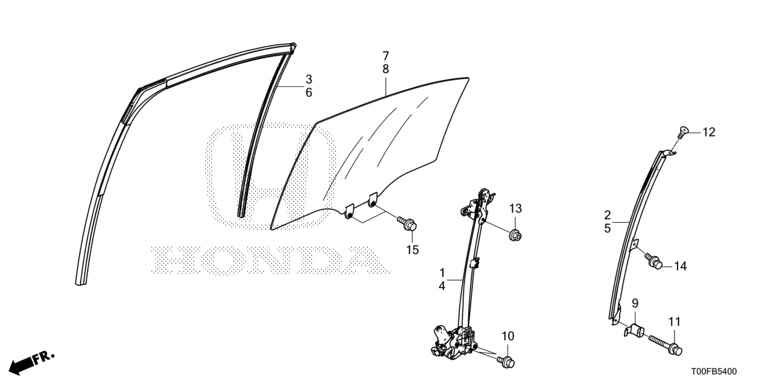

REAR DOOR GLASS
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 72710-T00-T01 | REGULATOR ASSY., R. RR. DOOR POWER | 001 |
| 2 | 72731-T08-K01 | SASH, R. RR. DOOR QUARTER | 001 |
| 3 | 72735-T00-T01 | RUNCHANNEL, R. RR. DOOR | 001 |
| 4 | 72750-T00-T01 | REGULATOR ASSY., L. RR. DOOR POWER | 001 |
| 5 | 72771-T08-K01 | SASH, L. RR. DOOR QUARTER | 001 |
| 6 | 72775-T00-T01 | RUNCHANNEL, L. RR. DOOR | 001 |
| 7 | 73400-T08-K01 | GLASS ASSY., R. RR. DOOR (GREEN) (SAINT GOBAIN) | 001 |
| 8 | 73450-T08-K01 | GLASS ASSY., L. RR. DOOR (GREEN) (SAINT GOBAIN) | 001 |
| 9 | 76218-SB4-000 | COLLAR B, RR. DOOR PANEL LOWER | 002 |
| 10 | 90021-TG2-000 | BOLT, FLANGE, 6X10 | 004 |
| 11 | 90101-T00-T00 | BOLT-WASHER, 6X43 | 002 |
| 12 | 90103-T9A-000 | SCREW, FLAT, 4X8 (TORX) | 002 |
| 13 | 90301-T5A-000 | NUT, FLANGE, 6MM | 002 |
| 14 | 93405-06016-08 | BOLT-WASHER, 6X16 | 002 |
| 15 | 95701-06016-08 | BOLT, FLANGE, 6X16 | 004 |
