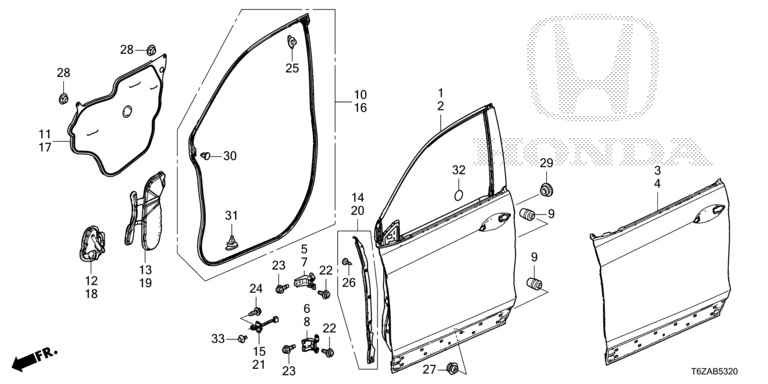

Front Door
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 67010-TG7-A02ZZ | PANEL COMP., R. FR. DOOR | 001 |
| 2 | 67050-TG7-A02ZZ | PANEL COMP., L. FR. DOOR | 001 |
| 3 | 67111-TG7-325ZZ | SKIN SET, R. FR. DOOR | 001 |
| 4 | 67151-TG7-325ZZ | SKIN SET, L. FR. DOOR | 001 |
| 5 | 67410-T4F-H01ZZ | HINGE, R. FR. DOOR UPPER | 001 |
| 6 | 67420-TG7-A01ZZ | HINGE, R. FR. DOOR LOWER | 001 |
| 7 | 67450-T4F-H01ZZ | HINGE, L. FR. DOOR UPPER | 001 |
| 8 | 67460-TG7-A01ZZ | HINGE, L. FR. DOOR LOWER | 001 |
| 9 | 72142-SM4-000 | STOPPER, DOOR | 004 |
| 10 | 72310-TG7-A01 | WEATHERSTRIP, R. FR. DOOR | 001 |
| 11 | 72321-TG7-A01 | SEAL, R. FR. DOOR HOLE | 001 |
| 12 | 72322-TG7-A01 | BARRIER A, R. FR. DOOR PANEL | 001 |
| 13 | 72323-TG7-A01 | BARRIER B, R. FR. DOOR PANEL | 001 |
| 14 | 72336-TG7-A02 | SEAL, R. FR. DOOR GAP | 001 |
| 15 | 72340-TG7-A02 | CHECKER COMP., R. FR. DOOR | 001 |
| 16 | 72350-TG7-A01 | WEATHERSTRIP, L. FR. DOOR | 001 |
| 17 | 72361-TG7-A01 | SEAL, L. FR. DOOR HOLE | 001 |
| 18 | 72362-TG7-A01 | BARRIER A, L. FR. DOOR PANEL | 001 |
| 19 | 72363-TG7-A01 | BARRIER B, L. FR. DOOR PANEL | 001 |
| 20 | 72376-TG7-A02 | SEAL, L. FR. DOOR GAP | 001 |
| 21 | 72380-TG7-A02 | CHECKER COMP., L. FR. DOOR | 001 |
| 22 | 90101-SZ3-000 | BOLT, FLANGE, 8X22 (8.5MM) | 008 |
| 23 | 90102-S3N-003 | BOLT, FLANGE, 8X24.5 (10.5MM) | 008 |
| 23 | 90102-SFA-305 | BOLT, FLANGE, 8X18 (SERVICE) | (8) |
| 24 | 90141-S04-000 | BOLT, FLANGE, 8X22 | 002 |
| 25 | 90651-TA0-003 | CLIP, PANEL | 002 |
| 26 | 90651-TG7-000 | CLIP, DOOR SEAL | 010 |
| 27 | 90810-SNA-003 | GROMMET, 10MM | 002 |
| 28 | 90815-SZA-A01 | GROMMET, 15MM | 004 |
| 29 | 90825-SNA-003 | GROMMET, 25MM | 002 |
| 30 | 91518-S10-003 | CLIP, MOLDING | 002 |
| 31 | 91568-TR0-003 | CLIP, DOOR WEATHERSTRIP | 048 |
| 32 | 91657-SP0-000 | SEAL C, DOOR PANEL HOLE (25MM) | 008 |
| 33 | 93405-06016-08 | BOLT-WASHER, 6X16 | 004 |
