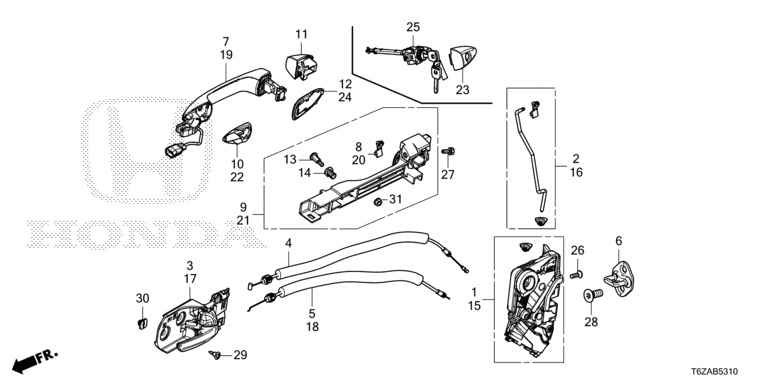

Door Handle Front
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 72110-T5R-A31 | LATCH ASSY., R. FR. DOOR POWER | 001 |
| 2 | 72113-TG7-305 | ROD SET, R. FR. DOOR LATCH | 001 |
| 3 | 72120-THR-A01 | HANDLE ASSY., R. FR. DOOR INSIDE | 001 |
| 4 | 72131-TG7-A00 | CABLE, FR. INSIDE HANDLE | 002 |
| 5 | 72133-TG7-A00 | CABLE, R. FR. DOOR LOCK | 001 |
| 6 | 72135-SDA-A01 | STRIKER ASSY., DOOR LOCK | 002 |
| 7 | 72141-TG7-A81ZC | HANDLE COMP., R. FR. *NH797M* (NH797M MODERN STEEL METALLIC) | 001 |
| 7 | 72141-TG7-A81ZD | HANDLE COMP., R. FR. *NH731P* (NH731P CRYSTAL BLACK PEARL) | 001 |
| 7 | 72141-TG7-A81ZP | HANDLE COMP., R. FR. *NH883P* (NH883P PLATINUM WHITE PEARL) | 001 |
| 7 | 72141-TG7-A81ZR | HANDLE COMP., R. FR. *R580M* (R580M RADIANT RED METALLIC II) | 001 |
| 7 | 72141-TG7-A81ZS | HANDLE COMP., R. FR. *NH877P* (NH877P SONIC GRAY PEARL) | 001 |
| 7 | 72141-TG7-A81ZU | HANDLE COMP., R. FR. *NH932M* (NH932M SOLAR REFLECTION SILVER METALLIC) | 001 |
| 7 | 72141-TG7-A81ZV | HANDLE COMP., R. FR. *G545M* (G545M ASH GREEN METALLIC) | 001 |
| 8 | 72141-TZ5-004 | BUSH, R. JOINT (GREEN) | 001 |
| 9 | 72142-TG7-A71 | BASE COMP., R. FR. | 001 |
| 10 | 72143-T2A-A21 | SEAT A, R. FR. | 001 |
| 11 | 72143-T2A-A71A2 | COVER COMP., R. FR. *G545M* (G545M ASH GREEN METALLIC) | 001 |
| 11 | 72143-T2A-A71YP | COVER COMP., R. FR. *NH883P* (NH883P PLATINUM WHITE PEARL) | 001 |
| 11 | 72143-T2A-A71YV | COVER COMP., R. FR. *R580M* (R580M RADIANT RED METALLIC II) | 001 |
| 11 | 72143-T2A-A71YW | COVER COMP., R. FR. *NH877P* (NH877P SONIC GRAY PEARL) | 001 |
| 11 | 72143-T2A-A71YY | COVER COMP., R. FR. *NH932M* (NH932M SOLAR REFLECTION SILVER METALLIC) | 001 |
| 11 | 72143-T2A-A71ZC | COVER COMP., R. FR. *NH797M* (NH797M MODERN STEEL METALLIC) | 001 |
| 11 | 72143-T2A-A71ZE | COVER COMP., R. FR. *NH731P* (NH731P CRYSTAL BLACK PEARL) | 001 |
| 12 | 72144-T2A-A21 | SEAT B, R. FR. | 001 |
| 13 | 72146-TR0-A51 | BOLT, SPECIAL, 6MM | 002 |
| 14 | 72146-TR0-A61 | COLLAR | 002 |
| 15 | 72150-T5R-A41 | LATCH ASSY., L. FR. DOOR POWER | 001 |
| 16 | 72153-TG7-305 | ROD SET, L. FR. DOOR LATCH | 001 |
| 17 | 72160-THR-A01 | HANDLE ASSY., L. FR. DOOR INSIDE | 001 |
| 18 | 72173-TG7-A00 | CABLE, L. FR. DOOR LOCK | 001 |
| 19 | 72181-TG7-A81ZC | HANDLE COMP., L. FR. *NH797M* (NH797M MODERN STEEL METALLIC) | 001 |
| 19 | 72181-TG7-A81ZD | HANDLE COMP., L. FR. *NH731P* (NH731P CRYSTAL BLACK PEARL) | 001 |
| 19 | 72181-TG7-A81ZP | HANDLE COMP., L. FR. *NH883P* (NH883P PLATINUM WHITE PEARL) | 001 |
| 19 | 72181-TG7-A81ZR | HANDLE COMP., L. FR. *R580M* (R580M RADIANT RED METALLIC II) | 001 |
| 19 | 72181-TG7-A81ZS | HANDLE COMP., L. FR. *NH877P* (NH877P SONIC GRAY PEARL) | 001 |
| 19 | 72181-TG7-A81ZU | HANDLE COMP., L. FR. *NH932M* (NH932M SOLAR REFLECTION SILVER METALLIC) | 001 |
| 19 | 72181-TG7-A81ZV | HANDLE COMP., L. FR. *G545M* (G545M ASH GREEN METALLIC) | 001 |
| 20 | 72181-TZ5-004 | BUSH, L. JOINT (GRAY) | 001 |
| 21 | 72182-TG7-A71 | BASE COMP., L. FR. | 001 |
| 22 | 72183-T2A-A21 | SEAT A, L. FR. | 001 |
| 23 | 72184-T2A-A11A2 | COVER, L. FR. BASE (HOLE) *G545M* (G545M ASH GREEN METALLIC) | 001 |
| 23 | 72184-T2A-A11YP | COVER, L. FR. BASE (HOLE) *NH883P* (NH883P PLATINUM WHITE PEARL) | 001 |
| 23 | 72184-T2A-A11YV | COVER, L. FR. BASE (HOLE) *R580M* (R580M RADIANT RED METALLIC II) | 001 |
| 23 | 72184-T2A-A11YW | COVER, L. FR. BASE (HOLE) *NH877P* (NH877P SONIC GRAY PEARL) | 001 |
| 23 | 72184-T2A-A11YY | COVER, L. FR. BASE (HOLE) *NH932M* (NH932M SOLAR REFLECTION SILVER METALLIC) | 001 |
| 23 | 72184-T2A-A11ZC | COVER, L. FR. BASE (HOLE) *NH797M* (NH797M MODERN STEEL METALLIC) | 001 |
| 23 | 72184-T2A-A11ZE | COVER, L. FR. BASE (HOLE) *NH731P* (NH731P CRYSTAL BLACK PEARL) | 001 |
| 24 | 72184-T2A-A21 | SEAT B, L. FR. | 001 |
| 25 | 72185-TG7-A01 | CYLINDER, L. DOOR | 001 |
| 26 | 90103-TR0-003 | BOLT, DOOR LATCH, 6MM | 006 |
| 27 | 90104-TR0-000 | BOLT, OUTER HANDLE | 002 |
| 28 | 90120-T2A-000 | BOLT, LOCK STRIKER | 004 |
| 29 | 90141-SZN-000 | SCREW, TAPPING, 5X12 | 004 |
| 30 | 90662-SB2-003 | GROMMET, SCREW, 5MM | 004 |
| 31 | 94050-06080 | NUT, FLANGE, 6MM | 002 |
