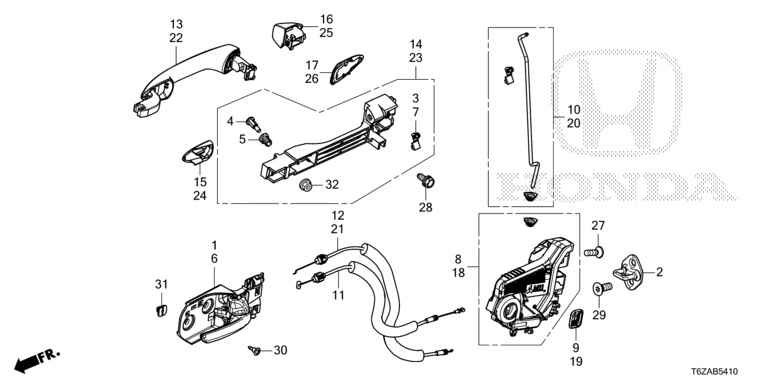

Door Handle Rear
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 72120-THR-A01 | HANDLE ASSY., R. FR. DOOR INSIDE | 001 |
| 2 | 72135-SDA-A01 | STRIKER ASSY., DOOR LOCK | 002 |
| 3 | 72141-TZ5-004 | BUSH, R. JOINT (GREEN) | 001 |
| 4 | 72146-TR0-A51 | BOLT, SPECIAL, 6MM | 002 |
| 5 | 72146-TR0-A61 | COLLAR | 002 |
| 6 | 72160-THR-A01 | HANDLE ASSY., L. FR. DOOR INSIDE | 001 |
| 7 | 72181-TZ5-004 | BUSH, L. JOINT (GRAY) | 001 |
| 8 | 72610-T5R-A31 | LATCH ASSY., R. RR. DOOR POWER | 001 |
| 9 | 72612-T0A-A01 | CAP, R. CHILD LOCK | 001 |
| 10 | 72613-T6Z-305 | ROD SET, R. RR. DOOR LATCH | 001 |
| 11 | 72631-T6Z-A01 | CABLE, RR. INSIDE HANDLE | 002 |
| 12 | 72633-T6Z-A01 | CABLE, R. RR. DOOR LOCK | 001 |
| 13 | 72641-T2A-A71YQ | HANDLE COMP., R. RR. *NH883P* (NH883P PLATINUM WHITE PEARL) | 001 |
| 13 | 72641-T2A-A71YS | HANDLE COMP., R. RR. *R580M* (R580M RADIANT RED METALLIC II) | 001 |
| 13 | 72641-T2A-A71YT | HANDLE COMP., R. RR. *NH877P* (NH877P SONIC GRAY PEARL) | 001 |
| 13 | 72641-T2A-A71YV | HANDLE COMP., R. RR. *NH932M* (NH932M SOLAR REFLECTION SILVER METALLIC) | 001 |
| 13 | 72641-T2A-A71YW | HANDLE COMP., R. RR. *G545M* (G545M ASH GREEN METALLIC) | 001 |
| 13 | 72641-T2A-A71ZC | HANDLE COMP., R. RR. *NH797M* (NH797M MODERN STEEL METALLIC) | 001 |
| 13 | 72641-T2A-A71ZE | HANDLE COMP., R. RR. *NH731P* (NH731P CRYSTAL BLACK PEARL) | 001 |
| 14 | 72642-T6Z-A71 | BASE COMP., R. RR. | 001 |
| 15 | 72643-T2A-A21 | SEAT A, R. RR. | 001 |
| 16 | 72643-T2A-A71YK | COVER COMP., R. RR. *NH883P* (NH883P PLATINUM WHITE PEARL) | 001 |
| 16 | 72643-T2A-A71YP | COVER COMP., R. RR. *R580M* (R580M RADIANT RED METALLIC II) | 001 |
| 16 | 72643-T2A-A71YQ | COVER COMP., R. RR. *NH877P* (NH877P SONIC GRAY PEARL) | 001 |
| 16 | 72643-T2A-A71YR | COVER COMP., R. RR. *NH932M* (NH932M SOLAR REFLECTION SILVER METALLIC) | 001 |
| 16 | 72643-T2A-A71YT | COVER COMP., R. RR. *G545M* (G545M ASH GREEN METALLIC) | 001 |
| 16 | 72643-T2A-A71ZC | COVER COMP., R. RR. *NH797M* (NH797M MODERN STEEL METALLIC) | 001 |
| 16 | 72643-T2A-A71ZE | COVER COMP., R. RR. *NH731P* (NH731P CRYSTAL BLACK PEARL) | 001 |
| 17 | 72644-T2A-A21 | SEAT B, R. RR. | 001 |
| 18 | 72650-T5R-A31 | LATCH ASSY., L. RR. DOOR POWER | 001 |
| 19 | 72652-T0A-A01 | CAP, L. CHILD LOCK | 001 |
| 20 | 72653-T6Z-305 | ROD SET, L. RR. DOOR LATCH | 001 |
| 21 | 72673-T6Z-A01 | CABLE, L. RR. DOOR LOCK | 001 |
| 22 | 72681-T2A-A71YQ | HANDLE COMP., L. RR. *NH883P* (NH883P PLATINUM WHITE PEARL) | 001 |
| 22 | 72681-T2A-A71YS | HANDLE COMP., L. RR. *R580M* (R580M RADIANT RED METALLIC II) | 001 |
| 22 | 72681-T2A-A71YT | HANDLE COMP., L. RR. *NH877P* (NH877P SONIC GRAY PEARL) | 001 |
| 22 | 72681-T2A-A71YV | HANDLE COMP., L. RR. *NH932M* (NH932M SOLAR REFLECTION SILVER METALLIC) | 001 |
| 22 | 72681-T2A-A71YW | HANDLE COMP., L. RR. *G545M* (G545M ASH GREEN METALLIC) | 001 |
| 22 | 72681-T2A-A71ZC | HANDLE COMP., L. RR. *NH797M* (NH797M MODERN STEEL METALLIC) | 001 |
| 22 | 72681-T2A-A71ZE | HANDLE COMP., L. RR. *NH731P* (NH731P CRYSTAL BLACK PEARL) | 001 |
| 23 | 72682-T6Z-A71 | BASE COMP., L. RR. | 001 |
| 24 | 72683-T2A-A21 | SEAT A, L. RR. | 001 |
| 25 | 72683-T2A-A71YK | COVER COMP., L. RR. *NH883P* (NH883P PLATINUM WHITE PEARL) | 001 |
| 25 | 72683-T2A-A71YP | COVER COMP., L. RR. *R580M* (R580M RADIANT RED METALLIC II) | 001 |
| 25 | 72683-T2A-A71YQ | COVER COMP., L. RR. *NH877P* (NH877P SONIC GRAY PEARL) | 001 |
| 25 | 72683-T2A-A71YR | COVER COMP., L. RR. *NH932M* (NH932M SOLAR REFLECTION SILVER METALLIC) | 001 |
| 25 | 72683-T2A-A71YT | COVER COMP., L. RR. *G545M* (G545M ASH GREEN METALLIC) | 001 |
| 25 | 72683-T2A-A71ZC | COVER COMP., L. RR. *NH797M* (NH797M MODERN STEEL METALLIC) | 001 |
| 25 | 72683-T2A-A71ZE | COVER COMP., L. RR. *NH731P* (NH731P CRYSTAL BLACK PEARL) | 001 |
| 26 | 72684-T2A-A21 | SEAT B, L. RR. | 001 |
| 27 | 90103-TR0-003 | BOLT, DOOR LATCH, 6MM | 006 |
| 28 | 90104-TR0-000 | BOLT, OUTER HANDLE | 002 |
| 29 | 90120-T2A-000 | BOLT, LOCK STRIKER | 004 |
| 30 | 90141-SZN-000 | SCREW, TAPPING, 5X12 | 004 |
| 31 | 90662-SB2-003 | GROMMET, SCREW, 5MM | 004 |
| 32 | 94050-06080 | NUT, FLANGE, 6MM | 002 |
