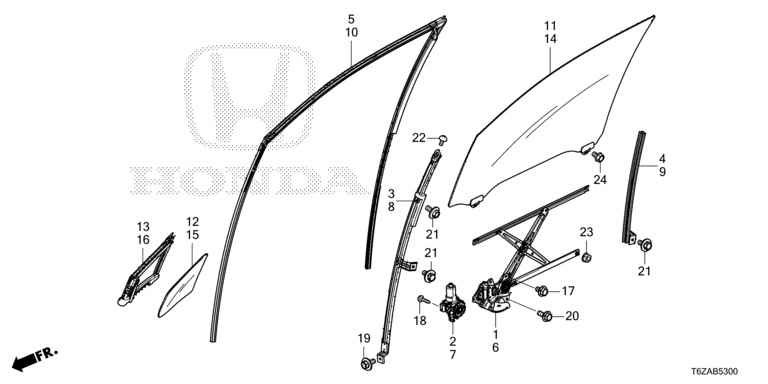

Front Door Glass
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 72211-TG7-A01 | REGULATOR ASSY., R. FR. DOOR | 001 |
| 2 | 72215-TG7-A01 | MOTOR ASSY., R. FR. WINDOW | 001 |
| 3 | 72230-TG7-A01 | SASH, R. FR. DOOR QUARTER | 001 |
| 4 | 72231-TG7-A01 | SASH, R. FR. DOOR CENTER LOWER | 001 |
| 5 | 72235-TG7-A11 | RUNCHANNEL, R. FR. DOOR | 001 |
| 6 | 72251-TG7-A01 | REGULATOR ASSY., L. FR. DOOR | 001 |
| 7 | 72255-TG7-A01 | MOTOR ASSY., L. FR. WINDOW | 001 |
| 8 | 72270-TG7-A01 | SASH, L. FR. DOOR QUARTER | 001 |
| 9 | 72271-TG7-A01 | SASH, L. FR. DOOR CENTER LOWER | 001 |
| 10 | 72275-TG7-A11 | RUNCHANNEL, L. FR. DOOR | 001 |
| 11 | 73300-TG7-A10 | GLASS ASSY., R. FR. DOOR (GREEN) (AGC) | 001 |
| 12 | 73330-TG7-A01 | GLASS, R. FR. DOOR QUARTER (GREEN) (AGC) | 001 |
| 13 | 73335-TG7-A02 | SEAL, R. FR. DOOR QUARTER | 001 |
| 14 | 73350-TG7-A10 | DOOR GLASS ASSY., L. FR. GREEN) (AGC) | 001 |
| 15 | 73370-TG7-A01 | GLASS, L. FR. DOOR QUARTER (GREEN) (AGC) | 001 |
| 16 | 73375-TG7-A02 | SEAL, L. FR. DOOR QUARTER | 001 |
| 17 | 90021-SFA-000 | BOLT, FLANGE, 6X10 | 004 |
| 18 | 90102-SZH-003 | SCREW, TAPPING | 006 |
| 19 | 90106-TK4-A00 | BOLT-WASHER, 6X16 | 002 |
| 20 | 90115-SZH-003 | BOLT, FLANGE, 6X12 | 004 |
| 21 | 93405-06016-08 | BOLT-WASHER, 6X16 | 006 |
| 22 | 93600-04008-0A | SCREW, FLAT, 4X8 | 002 |
| 23 | 94050-06080 | NUT, FLANGE, 6MM | 004 |
| 24 | 95701-06016-08 | BOLT, FLANGE, 6X16 | 004 |
