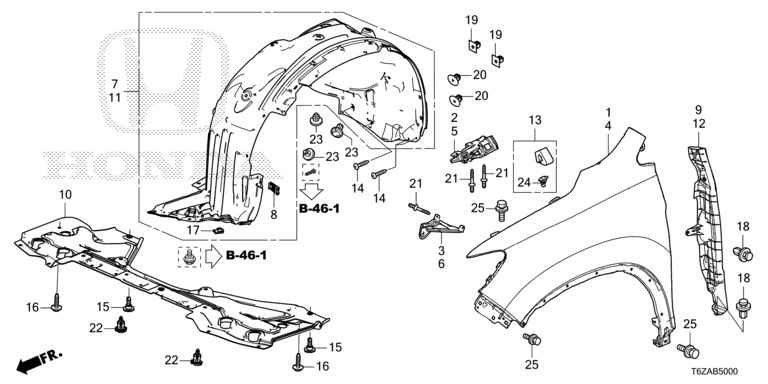

Front Fenders
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 60211-T6Z-A00ZZ | PANEL, R. FR. FENDER | 001 |
| 2 | 60212-T6Z-A00ZZ | BRACKET, R. FR. FENDER | 001 |
| 3 | 60213-TG7-A00ZZ | STAY, R. FR. FENDER | 001 |
| 4 | 60261-T6Z-A00ZZ | PANEL, L. FR. FENDER | 001 |
| 5 | 60262-T6Z-A00ZZ | BRACKET, L. FR. FENDER | 001 |
| 6 | 60263-TG7-A00ZZ | STAY, L. FR. FENDER | 001 |
| 7 | 74101-T6Z-A20 | FENDER, R. FR. INNER | 001 |
| 8 | 74104-TK8-A00 | NUT, SPRING, 5MM | 002 |
| 9 | 74105-TG7-A00 | ENCLOSURE, R. FR. FENDER | 001 |
| 10 | 74111-TZ5-A01 | SHIELD, FR. SPLASH | 001 |
| 11 | 74151-T6Z-A00 | FENDER, L. FR. INNER | 001 |
| 12 | 74155-TG7-A00 | ENCLOSURE, L. FR. FENDER | 001 |
| 13 | 74209-TG7-A00 | CUSHION, HOOD FIT | 002 |
| 14 | 90103-TA0-000 | SCREW, TAPPING, 5X20 | 012 |
| 15 | 90112-SL0-000 | BOLT C, BUMPER | 002 |
| 16 | 90120-TZ3-A01 | BOLT, 6X25 (ANTI-CROSS THREAD) | 002 |
| 17 | 90305-T6N-A00 | NUT, CLIP, 6MM | 006 |
| 18 | 90657-SB0-003 | CLIP, SPLASH SHIELD | 004 |
| 19 | 90682-SDA-A01 | GROMMET, SCREW, 5MM | 004 |
| 20 | 90682-SEA-003 | CLIP, TAPPING SCREW, 5MM | 004 |
| 21 | 90853-S3V-J03 | RIVET, 4.8MMX3.2T | 008 |
| 22 | 91505-TY4-A40 | CLIP, BUMPER | 002 |
| 23 | 91512-SX0-003 | CLIP, INNER FENDER | 024 |
| 24 | 91516-SM4-013 | CLIP, RR. COMBINATION PROTECTOR | 002 |
| 25 | 93405-06016-08 | BOLT-WASHER, 6X16 | 016 |
