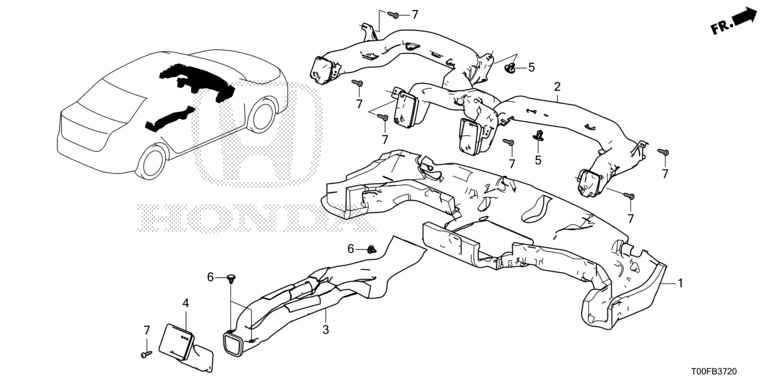

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 2 | 77440-T08-T01 | DUCT VENTILATION (AIR CONDITIONER) | 001 |
| 3 | 83460-T08-T00 | DUCT ASSY., CONSOLE JOINT | 001 |
| 4 | 83465-T9A-T00 | DUCT, RR. VENT RR. | 001 |
| 5 | 90667-TC0-U01ZM | CLIP ASSY., TRIM (NH900L NEUTRAL BLACK) | 002 |
| 6 | 91550-SFJ-W01ZE | CLIP, CENTER LOWER (NH900L NEUTRAL BLACK) | 003 |
| 7 | 93913-14420 | SCREW, TAPPING, 4X16 (PO) | 007 |
