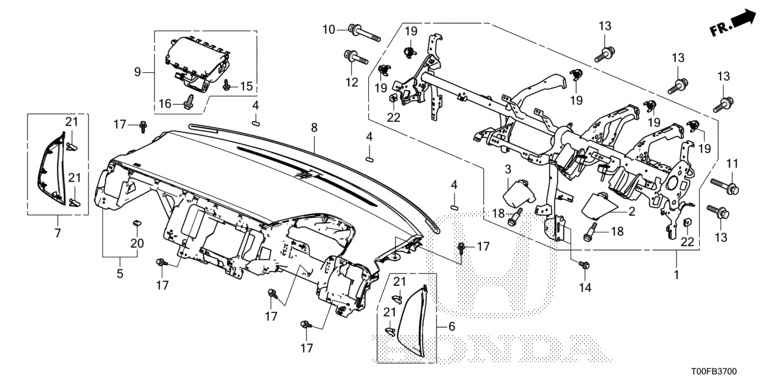

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 61300-T11-T00ZZ | BEAM COMP., STEERING HANGER | 001 |
| 2 | 61351-T02-T00 | PAD, DRIVER OUTSIDE KNEE | 001 |
| 3 | 61355-T02-T00 | PAD, DRIVER INSIDE KNEE | 001 |
| 4 | 66844-SA7-000 | CAP, INSTRUMENT PANEL STAY | 003 |
| 5 | 77100-T08-T00ZA | PANEL COMP., INSTRUMENT (NH900L NEUTRAL BLACK) | 001 |
| 6 | 77210-T02-T01ZA | LID ASSY., R. INSTRUMENT SIDE (NH900L NEUTRAL BLACK) | 001 |
| 7 | 77215-T02-T01ZA | LID ASSY., L. INSTRUMENT SIDE (NH900L NEUTRAL BLACK) | 001 |
| 8 | 77466-T11-T00 | SEAL, FR. INSTRUMENT | 001 |
| 9 | 77820-T02-T80 | MODULE ASSY., PASSENGER | 001 |
| 10 | 90111-T11-T20 | BOLT-WASHER, 8X113 | 001 |
| 11 | 90111-T11-T10 | BOLT-WASHER, 8X90 | 001 |
| 12 | 90111-T7A-J00 | BOLT-WASHER, 8X68 | 001 |
| 13 | 90111-T9D-T30 | BOLT-WASHER, 8X50 | 004 |
| 14 | 90113-SAA-003 | BOLT, SPECIAL, 6X14 | 002 |
| 15 | 90133-T5A-J01 | BOLT, FLANGE, 5X16 | 002 |
| 16 | 90134-T5A-J01 | BOLT, FLANGE, 8X19 | 001 |
| 17 | 90140-T5H-H00 | BOLT-WASHER, 5X19 | 006 |
| 18 | 90140-TF0-000 | BOLT, FLANGE, 6X30 | 002 |
| 19 | 90310-TBA-A01 | SPACER, ADJUST | 005 |
| 20 | 90321-T5A-J01 | NUT, SPRING, 5MM | 002 |
| 21 | 90666-TDK-003 | CLIP, SNAP FITTING (PO) | 010 |
| 22 | 91641-SM4-003 | GROMMET, SCREW, 4MM | 002 |
