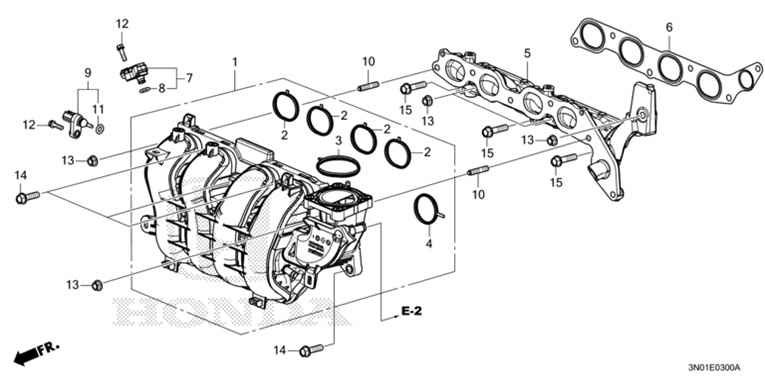

Intake Manifold
| Ref No | Part Number | Part Description |
| 1 | 17100-6Y0-004 | Manifold assembly, intake |
| 2 | 17105-55A-Z01 | Packing, intake port |
| 3 | 17107-6Y0-004 | Packing, Throttle Body |
| 4 | 17116-5Y3-J01 | Packing, EGR port |
| 5 | 17145-6Y0-000 | Plate, EGR |
| 6 | 17146-6Y0-004 | Gasket, EGR Plate |
| 7 | 37830-6Y0-J01 | Sensor Assy., Maf |
| 8 | 37835-PGK-A01 | O-Ring |
| 9 | 37880-RWC-A01 | Sensor assembly, air temperature |
| 10 | 90025-RGA-000 | Bolt, Stud 8X28 |
| 11 | 91303-RWC-A01 | O-Ring 6.8X3.1 |
| 12 | 93403-05020-08 | Bolt Washer 5X20 |
| 13 | 94050-08080 | Nut, Flange (8Mm) |
| 14 | 95701-08030-08 | Bolt, Flange (8X30) |
| 15 | 95701-08035-08 | Bolt, Flange (8X35) |
