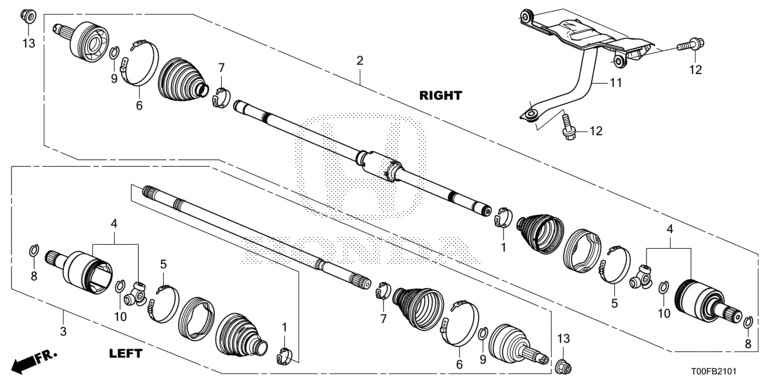

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 42317-TZ6-A01 | BAND, DRIVESHAFT BOOT | 002 |
| 2 | 44305-T08-B01 | DRIVESHAFT ASSY., R. | 001 |
| 3 | 44306-T08-B01 | DRIVESHAFT ASSY., L. | 001 |
| 4 | 44310-T08-B01 | INBOARD JOINT | 002 |
| 5 | 44316-T9C-B01 | BAND, INBOARD BOOT | 002 |
| 6 | 44317-TJ0-M01 | BAND, OUTBOARD BOOT (GKN) | 002 |
| 7 | 44318-TJ0-M11 | BAND, OUTBOARD SHAFT BOOT (GKN) | 002 |
| 8 | 44319-SR1-003 | SET RING, 26X1.8 (GKN) | 002 |
| 9 | 44337-S6D-E01 | RING B, STOPPER | 002 |
| 10 | 44338-SNE-A01 | CIRCLIP | 002 |
| 11 | 44517-TDK-000 | COVER COMP., HEAT | 001 |
| 12 | 90165-TF0-J01 | BOLT, FLANGE, 8X35 | 003 |
| 13 | 90305-692-010 | NUT, SPINDLE (22MM) | 002 |
