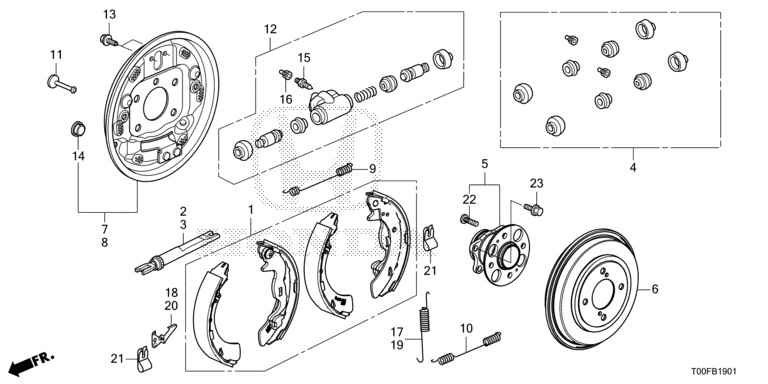

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 04431-T9D-D00 | SHOE KIT, RR. BRAKE | 001 |
| 2 | 04432-TM2-T00 | ADJUSTER ASSY., R. AUTOMATIC | 001 |
| 3 | 04433-TM2-T00 | ADJUSTER ASSY., L. AUTOMATIC | 001 |
| 4 | 04434-T9D-D00 | REPAIR KIT, WHEEL CYLINDER | 001 |
| 5 | 42200-TZR-H51 | BEARING HUB UNIT RR | 002 |
| 6 | 42610-T9D-D01 | DRUM, RR. BRAKE | 002 |
| 7 | 43110-T9D-D01 | PLATE ASSY., R. BACK | 001 |
| 8 | 43120-T9D-D01 | PLATE ASSY., L. BACK | 001 |
| 9 | 43171-T9D-D01 | SPRING, SHOE RETURN | 002 |
| 10 | 43172-TM2-T01 | SPRING, ANCHOR | 002 |
| 11 | 43175-T9D-D01 | PIN, RETAINING | 004 |
| 12 | 43300-T9D-D00 | CYLINDER ASSY., RR. WHEEL | 002 |
| 13 | 43305-TM2-T01 | SCREW, MOUNTING | 004 |
| 14 | 43345-SEM-T01 | PLUG, INSPECTION | 004 |
| 15 | 43352-TM2-T01 | SCREW, BLEEDER | 002 |
| 16 | 43353-SEM-T01 | CAP, DUST | 002 |
| 17 | 43367-TM2-T01 | SPRING, ADJUSTER (LEFT HAND SIDE) | 001 |
| 18 | 43368-TM2-T01 | LEVER, PAWL (LEFT HAND SIDE) | 001 |
| 19 | 43377-TM2-T01 | SPRING, ADJUSTER (RIGHT HAND SIDE) | 001 |
| 20 | 43378-TM2-T01 | LEVER, PAWL (RIGHT HAND SIDE) | 001 |
| 21 | 45172-SEM-T01 | SPRING, PLATE | 004 |
| 22 | 90113-S5H-005 | BOLT, WHEEL (THAI MEIRA) | 008 |
| 22 | 90113-SA0-006 | BOLT, WHEEL (SAGA) | 008 |
| 22 | 90113-SA0-025 | BOLT, WHEEL (NAGOYA RASHI) | 008 |
| 22 | 90113-SM1-005 | BOLT, WHEEL (ROCKNEL FASTENER) | 008 |
| 23 | 90160-TY0-980 | BOLT, FLANGE, 12X25 | 008 |
