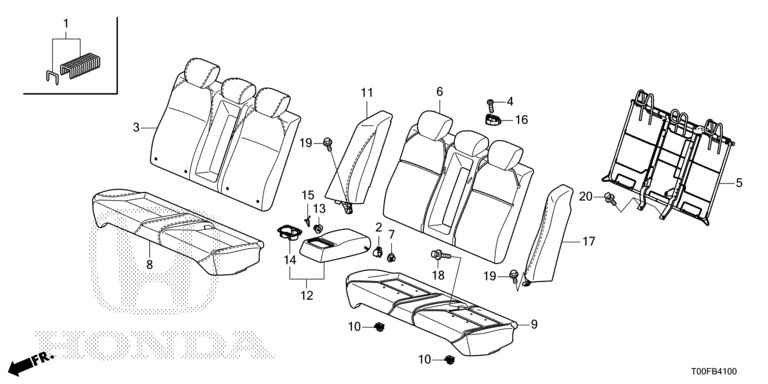

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 04810-SB3-000 | C CLIP SET, TRIM FASTENER (30 PIECES) | 001 |
| 2 | 78182-SA0-000 | CLIP, RR. SEAT PIN | 001 |
| 3 | 82121-T08-DQ1ZA | COVER, RR. SEATBACK TRIM (LEATHER) (NH882L PLATINUM GRAY) | 001 |
| 4 | 82124-TM0-G01 | SCREW, PAN, 6X18 | 001 |
| 5 | 82126-T02-T11 | FRAME COMP., RR. SEATBACK | 001 |
| 6 | 82127-T02-T51 | PAD COMP., RR. SEATBACK | 001 |
| 7 | 82129-SM4-A00 | COLLAR C | 001 |
| 8 | 82131-T08-DK1ZB | COVER, RR. SEAT CUSHION TRIM (LEATHER) (NH882L PLATINUM GRAY) | 001 |
| 9 | 82137-T02-T41 | PAD COMP., RR. SEAT CUSHION | 001 |
| 10 | 82138-T2A-003 | CLIP, RR. SEAT CUSHION | 002 |
| 11 | 82150-T08-DK1ZB | SEATBACK ASSY., R. RR. SIDE (LEATHER) (NH882L PLATINUM GRAY) | 001 |
| 12 | 82180-T08-DK1ZC | ARMREST ASSY., RR. SEAT CENTER (LEATHER) (NH882L PLATINUM GRAY) | 001 |
| 13 | 82182-SNE-A01 | COLLAR A, RR. SEAT | 001 |
| 14 | 82184-SNA-A01ZU | CUP HOLDER, RR. ARMREST (NH900L NEUTRAL BLACK) | 001 |
| 15 | 82189-SNE-A01 | CLIP, ARMREST | 001 |
| 16 | 82191-TM0-G02ZK | GUIDE, RR. CENTER SEATBELT WEBBING (NH882L PLATINUM GRAY) | 001 |
| 17 | 82550-T08-DK1ZB | SEATBACK ASSY., L. RR. SIDE (LEATHER) (NH882L PLATINUM GRAY) | 001 |
| 18 | 90123-TR0-003 | BOLT-WASHER, 6X22 | 001 |
| 19 | 90140-TA0-000 | BOLT, FLANGE, 6X14.5 | 002 |
| 20 | 93405-06016-08 | BOLT-WASHER, 6X16 | 002 |
