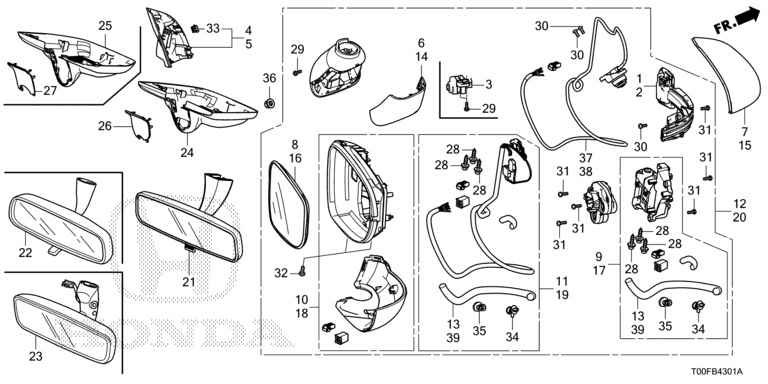

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 34300-T00-K01 | LIGHT ASSY., R. SIDE TURN | 001 |
| 2 | 34350-T00-K01 | LIGHT ASSY., L. SIDE TURN | 001 |
| 3 | 36580-T08-K01 | LANEWATCH CAMERA (PASSENGER SIDE) | 001 |
| 4 | 72443-T08-K11 | GARNISH, R. FR. DOOR QUARTER INNER (TWEETER) | 001 |
| 5 | 72483-T08-K11 | GARNISH, L. FR. DOOR QUARTER INNER (TWEETER) | 001 |
| 6 | 76201-T00-K11 | COVER, R. BASE | 001 |
| 7 | 76202-T00-K01ZB | CAP, R. SKULL (T99 UNPAINTED) | 001 |
| 8 | 76203-T00-K01 | MIRROR SUB ASSY., R. (R1300) | 001 |
| 9 | 76204-T00-K12 | TURN SET, R. AUTO | 001 |
| 10 | 76205-T00-K11 | HOUSING SET, R. | 001 |
| 11 | 76206-T00-K11 | HARNESS SET, R. | 001 |
| 12 | 76208-T00-K12 | MIRROR ASSY., R. DOOR (AUTO TURN) | 001 |
| 13 | 76220-T00-K01 | TUBE, CORRUGATE (RIGHT HAND SIDE) | 001 |
| 14 | 76251-T00-K21 | COVER, L. BASE (LANEWATCH) | 001 |
| 15 | 76252-T00-K01ZB | CAP, L. SKULL (T99 UNPAINTED) | 001 |
| 16 | 76253-T00-K01 | MIRROR SUB ASSY., L. (R1300) | 001 |
| 17 | 76254-T00-K22 | TURN SET, L. AUTO | 001 |
| 18 | 72655-T00-K21 | HOUSING SET, L. | 001 |
| 19 | 76256-T00-K21 | HARNESS SET, L. | 001 |
| 20 | 76258-T00-K22 | MIRROR ASSY., L. DOOR (AUTO TURN) | 001 |
| 23 | 76400-TZ3-A31 | MIRROR ASSY., RR. VIEW (AUTO DAY/NIGHT) | 001 |
| 25 | 76412-T11-K01 | COVER ASSY., SENSOR | 001 |
| 27 | 76413-T11-K01 | LID, SENSOR COVER | 001 |
| 28 | 90109-T00-K01 | SCREW, TAPPING WASHER, 5X22 (TORX) | 006 |
| 29 | 90109-T00-K11 | SCREW, PAN, 4X12 | 004 |
| 30 | 90109-T00-K21 | SCREW, TAPPING, 4X10 (PAN) | 002 |
| 31 | 90109-TSV-K01 | SCREW, TAPPING PAN, 4X14 | 012 |
| 32 | 90109-TSV-K21 | SCREW, TAPPING PAN, 5X12 | 004 |
| 33 | 90615-SK7-003 | CLIP, MIRROR GARNISH | 002 |
| 34 | 91540-S30-003 | CLIP, HARNESS BAND (NATURAL) (151.5MM) | 002 |
| 35 | 91545-SNA-003 | CLIP, HARNESS BAND (DARK BLUE) (164.5MM) (WITH SEAL) | 002 |
| 36 | 94050-06080 | NUT, FLANGE, 6MM | 006 |
| 39 | 76220-T00-K01 | TUBE, CORRUGATE (LEFT HAND SIDE) | 001 |
