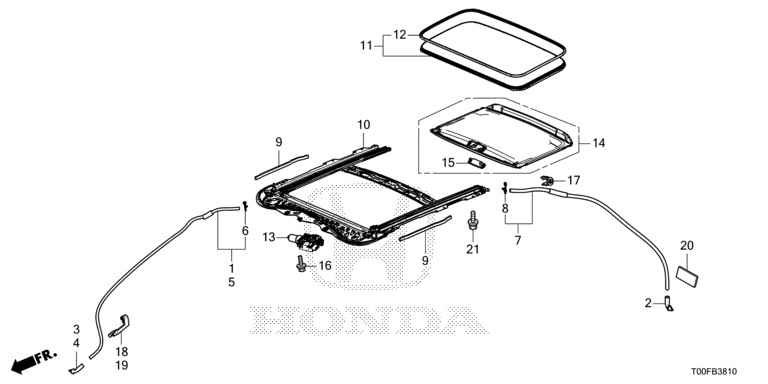

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 70050-T08-000 | TUBE, R. FR. DRAIN VINYL (SUNROOF) | 001 |
| 2 | 70052-SJD-J00 | VALVE, DRAIN (SUNROOF) (RR.) | 002 |
| 3 | 70052-T08-K00 | VALVE, R. FR. DRAIN (SUNROOF) | 001 |
| 4 | 70053-T08-K00 | VALVE, L. FR. DRAIN (SUNROOF) | 001 |
| 5 | 70055-T08-000 | TUBE, L. FR. DRAIN VINYL (SUNROOF) | 001 |
| 6 | 70057-T9C-D00 | CLIP, SUNROOF DRAIN TUBE | 002 |
| 7 | 70060-T08-000 | TUBE, RR. DRAIN VINYL (SUNROOF) | 002 |
| 8 | 70067-T9C-D00 | CLIP, SUNROOF DRAIN TUBE | 002 |
| 9 | 70082-T5R-A01 | SEAL, FRAME (B) | 002 |
| 10 | 70100-T08-K02 | FRAME SUNROOF | 001 |
| 11 | 70200-T9C-K01 | GLASS ROOF | 001 |
| 12 | 70205-T9C-D01 | SEAL, SUNROOF GLASS | 001 |
| 13 | 70450-T9C-D02 | MOTOR ASSY., SUNROOF | 001 |
| 14 | 70600-T9C-D03ZB | SUNSHADE ASSY. (NH882L PLATINUM GRAY) | 001 |
| 15 | 70611-T2A-A01ZH | HANDLE, SUNSHADE (NH882L PLATINUM GRAY) | 001 |
| 16 | 70617-T5R-A01 | BOLT-WASHER, 5X20 | 003 |
| 17 | 91504-S7A-J00 | CLIP, DRAIN TUBE | 002 |
| 18 | 91580-T08-K01 | CLIP, DRAIN TUBE (R.) | 001 |
| 19 | 91585-T08-K01 | CLIP, DRAIN TUBE (L.) | 001 |
| 20 | 91902-SB2-003 | CUSHION, WIRE HARNESS (50X100) | 002 |
| 21 | 93405-06016-08 | BOLT-WASHER, 6X16 | 010 |
