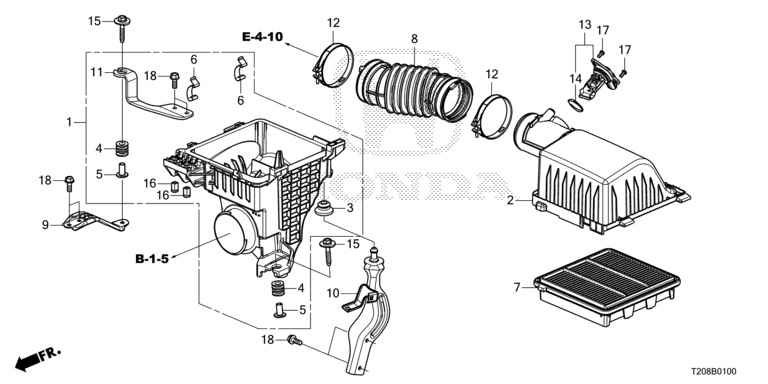

Air Cleaner
| Ref No. | Parts No. | Parts Name |
| 1 | 17201-64A-A00 | CASE SET, AIR CLEANER |
| 2 | 17210-64A-A00 | COVER COMP., AIR CLEANER |
| 3 | 17212-P2J-000 | RUBBER, AIR CLEANER MOUNTING |
| 4 | 17212-RL0-G00 | RUBBER, AIR CLEANER MOUNTING |
| 5 | 17216-PN3-000 | COLLAR, AIR CLEANER MOUNTING |
| 6 | 17217-P2J-300 | CLIP, AIR CLEANER |
| 7 | 17220-64A-A00 | AIR CLEANER ELEMENT |
| 8 | 17225-64A-A00 | TUBE, AIR FLOW |
| 9 | 17261-64A-A00 | STAY COMP. A, AIR CLEANER |
| 10 | 17262-64A-A00 | STAY COMP. B, AIR CLEANER |
| 11 | 17263-64A-A00 | Air Intake Bracket C |
| 12 | 17315-5A2-A01 | CLAMP, AIR FLOW (75) |
| 13 | 37980-5BA-A01 | Mass Air Flow (MAF) Sensor |
| 14 | 37985-5BA-A01 | O-RING |
| 15 | 90001-P0A-000 | BOLT-WASHER, SPECIAL, 6X35 |
| 16 | 90006-RB0-003 | NUT, INSERT, 6MM |
| 17 | 93500-04008-0H | SCREW, PAN, 4X8 |
| 18 | 95701-06016-08 | BOLT, FLANGE, 6X16 |
