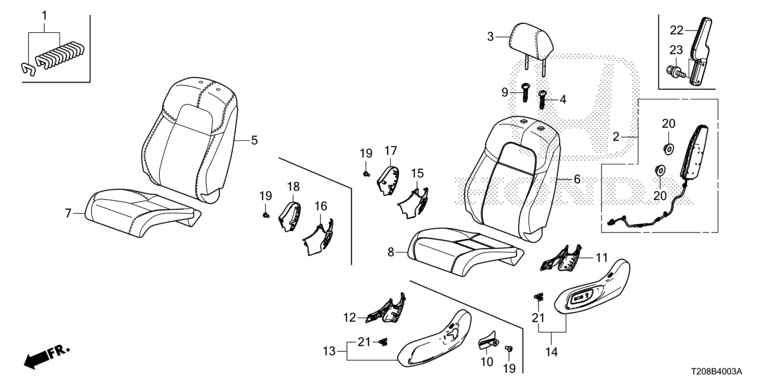

Front Seat Right
| Ref No | Parts No. | Parts Name |
| 1 | 04810-SB3-000 | C CLIP SET, TRIM FASTENER (30 PIECES) |
| 3 | 81121-T29-S51ZA | COVER, R. FR. SEATBACK TRIM (LEATHER) |
| 4 | 81127-T29-S51 | PAD COMP., R. FR. SEATBACK |
| 5 | 81131-T29-S51ZA | COVER, R. FR. SEAT CUSHION TRIM (LEATHER) |
| 6 | 81137-T29-S51 | PAD COMP., R. FR. SEAT CUSHION |
| 7 | 81140-T24-Z51ZA | HEADREST ASSY., FR. SEAT (LEATHER) |
| 8 | 81143-TZA-J01ZA | GUIDE, HEADREST FREE *NH900L* |
| 9 | 81144-TZA-J01ZA | GUIDE COMP., R. HEADREST LOCK *NH900L* |
| 10 | 81221-TZA-J11ZA | KNOB, R. FR. SEAT HEIGHT *NH900L* |
| 11 | 81231-TZA-J01ZA | KNOB, R. FR. SEAT RECLINING *NH900L* |
| 12 | 81234-TZA-J11ZA | COVER, R. RECLINING OUTER LAP *NH900L* |
| 14 | 81237-TZA-J11ZA | COVER, R. INNER RECLINING OUTER *NH900L* |
| 15 | 81238-T29-S11ZA | COVER COMP., R. RECLINING OUTER *NH900L* |
| 18 | 81247-TZA-J11ZA | COVER, R. INNER RECLINING INNER *NH900L* |
| 19 | 81248-TZA-J11ZA | COVER, R. RECLINING INNER *NH900L* |
| 20 | 82271-TJB-A21 | SCREW, TAPPING, 5X10 (HT) |
| 21 | 90132-SE3-003 | SCREW, TAPPING, 4X12 |
| 23 | 90610-SR3-003 | CLIP, GARNISH (KATO) |
| 24 | 90666-SA0-003M4 | CLIP, TRIM, 5MM *NH900L* |
| 25 | 81559-T29-S01 | SPACER, BLOCK |
| 26 | 93401-06016-08 | BOLT-WASHER, 6X16 |
