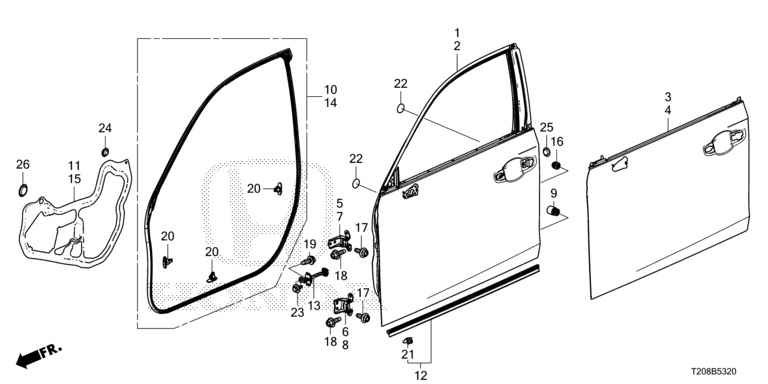

Front Door Panel
| Ref No. | Parts No. | Parts Name |
| 1 | 67010-T24-T00ZZ | DOOR PANEL, R. FR. |
| 2 | 67050-T24-T00ZZ | DOOR PANEL, L. FR. |
| 3 | 67111-T20-A00ZZ | SKIN, R. FR. DOOR |
| 4 | 67151-T20-A00ZZ | SKIN, L. FR. DOOR |
| 5 | 67410-TS2-T01ZZ | DOOR UPPER HINGE, R. FR. |
| 6 | 67420-TS2-T01ZZ | DOOR LOWER HINGE, R. FR. |
| 7 | 67450-TS2-T01ZZ | DOOR UPPER HINGE, L. FR. |
| 8 | 67460-TS2-T01ZZ | DOOR LOWER HINGE, L. FR. |
| 9 | 72142-SWA-A00 | STOPPER, DOOR |
| 10 | 72310-T24-T01 | DOOR WEATHERSTRIP, R. FR. |
| 11 | 72321-T39-A11 | DOOR HOLE SEAL, R. FR. |
| 12 | 72328-T24-T01 | S DOOR LOWER EAL, FR. |
| 13 | 72340-T24-T01 | DOOR CHECKER FR. |
| 14 | 72350-T24-T01 | DOOR WEATHERSTRIP, L. FR. |
| 15 | 72361-T39-A11 | DOOR HOLE SEAL, L. FR. |
| 16 | 75891-SA7-000 | STOPPER, DOOR |
| 17 | 90101-SZ3-000 | BOLT, FLANGE, 8X22 (8.5MM) |
| 18 | 90102-S3N-003 | BOLT, FLANGE, 8X24.5 (10.5MM) |
| 18 | 90102-SFA-305 | BOLT, FLANGE, 8X18 (SERVICE) |
| 19 | 90141-S04-000 | BOLT, FLANGE, 8X22 |
| 20 | 90651-TP8-003 | CLIP, DOOR WEATHERSTRIP |
| 21 | 91568-SJA-003 | CLIP, DOOR WEATHERSTRIP |
| 22 | 91657-SP0-000 | SEAL C, DOOR PANEL HOLE (25MM) |
| 23 | 93405-06016-08 | BOLT-WASHER, 6X16 |
| 24 | 95551-11000 | PLUG, BLIND, 11MM |
| 25 | 95551-15000 | PLUG, BLIND, 15MM |
| 26 | 95551-25000 | PLUG, BLIND, 25MM |
