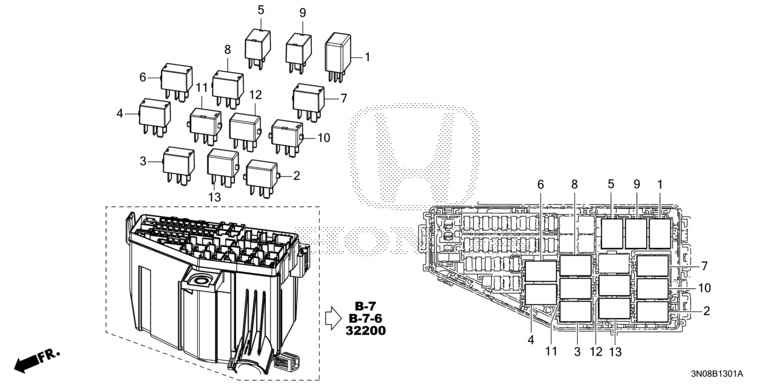

Control Unit Engine Room2
| Ref No. | Parts No. | Parts Name |
| 1 | 39794-S10-003 | RELAY POWER (5P) (MICRO ISO) (MITSUBA) (FAN HI/LOW) |
| 2 | 39794-SDA-003 | RELAY FUEL PUMP (MITSUBA) |
| 3 | 39794-SDA-A02 | RELAY POWER (MICRO ISO) (DENSO) (MAIN FAN) |
| 4 | 39794-SDA-A02 | RELAY POWER (MICRO ISO) (DENSO) (ENGINE EWP) |
| 5 | 39794-SDA-A02 | RELAY POWER (MICRO ISO) (DENSO) (EVTC) |
| 6 | 39794-SDA-A02 | RELAY POWER (MICRO ISO) (DENSO) (DRIVE BY WIRE) |
| 7 | 39794-SDA-A02 | RELAY POWER (MICRO ISO) (DENSO) (RR. DEFOGGER) |
| 8 | 39794-SDA-A02 | RELAY POWER (MICRO ISO) (DENSO) (HORN) |
| 9 | 39794-SDA-A02 | RELAY POWER (MICRO ISO) (DENSO) (CONDENSER FAN) |
| 10 | 39794-T5A-J01 | RELAY POWER (MICRO ISO) (DENSO) (IGNITION HOLD 1) |
| 11 | 39794-T5A-J01 | RELAY POWER (MICRO ISO) (DENSO) (PCU EWP) |
| 12 | 39794-T7A-901 | RELAY (MICRO ISO) (ECU) (DENSO) (FI MAIN) |
| 13 | 39794-T7A-901 | RELAY (MICRO ISO) (ECU) (DENSO) (IGNITION COIL) |
