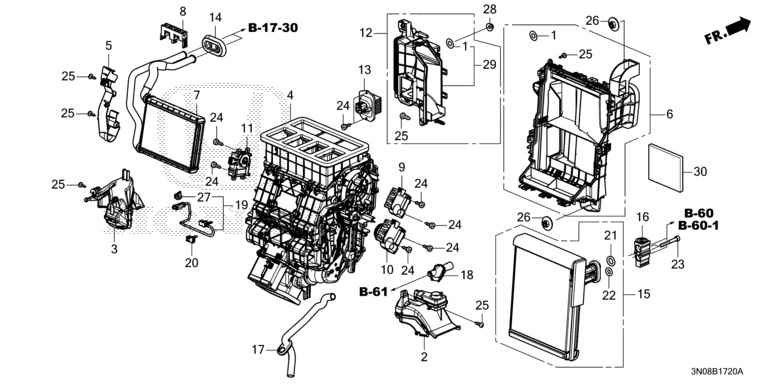

Heater Unit
| Ref No. | Parts No. | Parts Name |
| 1 | 39248-692-003 | PACKING, HEATER |
| 2 | 79101-T02-T41 | DRIVER HEATER DUCT |
| 3 | 79102-T02-T01 | PASSENGER HEATER DUCT |
| 4 | 79106-3M0-J51 | HEATER UNIT |
| 5 | 79107-TZA-J01 | HEATER CORE COVER |
| 6 | 79108-T02-T01 | EVAPORATOR CASE |
| 7 | 79110-TZA-J01 | HEATER CORE |
| 8 | 79111-TZA-J01 | HEATER PIPE STAY |
| 9 | 79140-T02-T01 | MODE CONTORL MOTOR |
| 10 | 79150-TAA-J41 | AIR MIX MOTOR TEMPERATURE DRIVER |
| 12 | 79308-T02-T01 | DUCT JOINT HVAC |
| 13 | 79330-TDJ-J41 | POWER TRANSISTO |
| 14 | 79731-S5A-000 | HEATER PIPE GROMMET |
| 15 | 80210-T02-T01 | EVAPORATOR CORE |
| 16 | 80220-T24-K31 | EXPANSION VALVE |
| 17 | 80271-T02-T00 | DRAIN HOSE |
| 18 | 80534-SAA-941 | ASPIRATOR |
| 19 | 80560-TAA-J41 | Evaporator THERMISTOR SENSOR |
| 20 | 80566-TG1-T01 | CLIP, EVAPORATOR SENSOR |
| 21 | 80871-SN7-003 | O-RING (5/8″) |
| 22 | 80872-SN7-003 | O-RING (1/2″) |
| 23 | 90126-S5J-M01 | BOLT, SOCKET, 5X40 |
| 24 | 90127-S84-003 | SCREW, TAPPING, 4X16 |
| 25 | 90127-SX0-003 | SCREW, TAPPING, 4X16 |
| 26 | 90321-TAA-000 | NUT-WASHER, 6MM (PAINT CUTTING) |
| 27 | 91580-SM4-003 | CLIP, COUPLER (ORANGE) |
| 28 | 94071-08080 | NUT-WASHER, 8MM |
